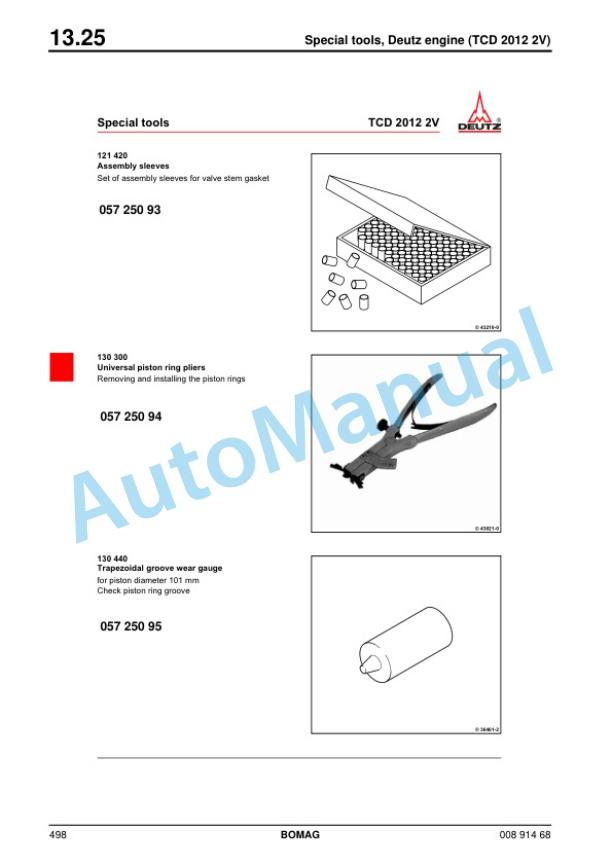

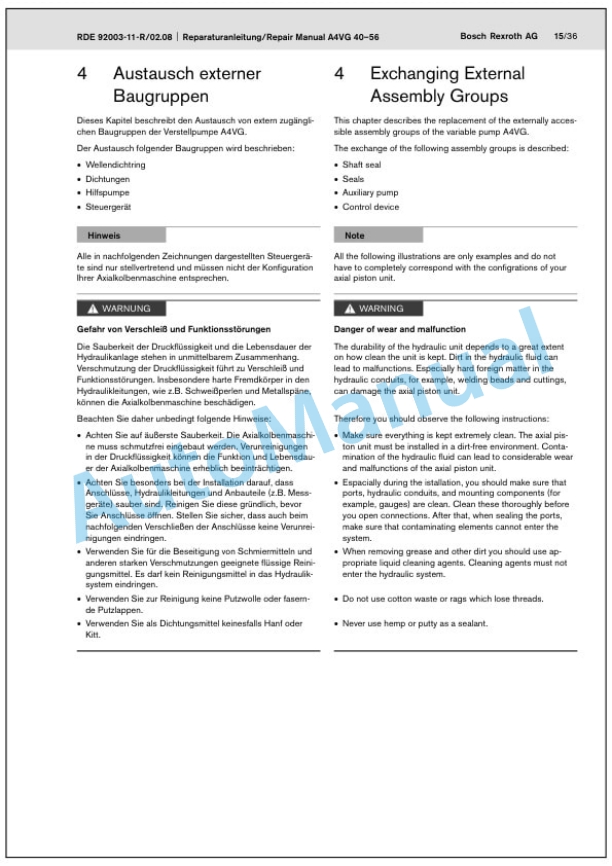

Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468
Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468 - Image 2
Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468 - Image 3
Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468 - Image 4
Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468 - Image 5

Bomag BW 190 AD-4, BW 202 AD-4, BW 203 AD-4 Tandem Vibratory Rollers Service Manual 00891468

$30.00

  • Type Of Manual: Service Manual
  • Manual ID: 00891468
  • Format: PDF
  • Size: 59.2MB
  • Number of Pages: 994
  • Serial Number:
    10192015 and up
    10192065 and up
    10192012 and up
    10192063 and up
    10192075 and up
    86192086 and up
    10192014 and up
    10192064 and up
Category:

Description

  • Model List:

    • BW 190 AD-4 Tandem Vibratory Roller
    • BW 202 AD-4 Tandem Vibratory Roller
    • BW 203 AD-4 Tandem Vibratory Roller
  • 1. BW 190 AD4
  • 1.1. BW 190 AD4
  • 2. General
  • 2.1. General
  • 2.2. Introduction
  • 2.3. General
  • 2.4. General
  • 2.5. Transport work with cranes and lifting tackle
  • 2.6. Precautions and codes of conduct for welding work
  • 2.7. Operation of highvoltage systems
  • 2.8. Old oils
  • 2.9. Hydraulics
  • 2.10. Hot fuels
  • 2.11. Synthetic rubber
  • 2.12. Poisonous substances
  • 2.13. Air conditioning system
  • 2.14. Battery
  • 2.15. Special safety regulations
  • 2.16. The values specified in the table apply for screws
  • 2.17. The values specified in the table apply for screws
  • 2.18. The values specified in the table apply for screws
  • 2.19. The values specified in the table apply for screws
  • 2.20. The values specified in the table apply for screws
  • 2.21. The values specified in the table apply for screws
  • 2.22. The values specified in the table apply for screws
  • 2.23. The values specified in the table apply for screws
  • 2.24. The values specified in the table apply for screws
  • 2.25. The values specified in the table apply for screws
  • 2.26. The values specified in the table apply for screws
  • 2.27. The values specified in the table apply for screws
  • 2.28. The values specified in the table apply for screws
  • 2.29. The values specified in the table apply for screws
  • 2.30. The values specified in the table apply for screws
  • 3. Pivot steered tandem rollers
  • 3.1. Pivot steered tandem rollers
  • 4. Technical data
  • 4.1. Technical data
  • 5. Maintenance
  • 5.1. Maintenance
  • 5.2. General notes on maintenance
  • 5.3. Fuels and lubricants
  • 5.4. Coolant
  • 5.5. Mineral oil based hydraulic oil
  • 5.6. Biodegradable hydraulic oil
  • 5.7. Gear oil
  • 5.8. Exciter shaft oil
  • 5.9. Lubrication grease
  • 6. Electrics
  • 6.1. Electrics
  • 6.2. Battery service, checking the main battery switch
  • 6.3. Battery service, checking the main battery switch
  • 6.4. Battery service, checking the main battery switch
  • 6.5. Battery service, checking the main battery switch
  • 6.6. Battery service, checking the main battery switch
  • 6.7. Battery service, checking the main battery switch
  • 6.8. Battery service, checking the main battery switch
  • 6.9.
  • 6.10.
  • 6.11. Starting with jump wires
  • 6.12.
  • 6.13.
  • 6.14. S01, Emergency stop switch
  • 6.15.
  • 6.16.
  • 6.17.
  • 6.18.
  • 6.19.
  • 6.20.
  • 6.21.
  • 7. Electronic modules
  • 7.1. Electronic modules
  • 7.2.
  • 7.3.
  • 7.4.
  • 7.5.
  • 7.6.
  • 7.7.
  • 7.8.
  • 7.9.
  • 7.10.
  • 7.11.
  • 7.12.
  • 7.13.
  • 7.14.
  • 7.15.
  • 7.16.
  • 7.17.
  • 7.18.
  • 7.19.
  • 8. Speedometer Module
  • 8.1. Speedometer Module
  • 9. Engine electrics
  • 9.1. Engine electrics
  • 10. Hydraulics
  • 10.1. Hydraulics
  • 10.2. Variable displacement pump, A4VG56HW / A4VG28HW
  • 10.3. Variable displacement pump, A4VG56HW / A4VG28HW
  • 10.4. Variable displacement pump, A4VG56HW / A4VG28HW
  • 10.5. Variable displacement pumps, A10VG28/45/56 EZ
  • 10.6. Variable displacement pumps, A10VG28/45/56 EZ
  • 10.7. Swash plate principle, pump
  • 10.8. Swash plate principle, pump
  • 10.9. Swash plate motor with variable displacement, series 51
  • 10.10. Swash plate motor with variable displacement, series 51
  • 10.11. Vibration motors A4FM22/28
  • 10.12. Vibration motors A4FM22/28
  • 10.13. Vibration valve
  • 10.14. Vibration valve
  • 10.15. Steering valve
  • 10.16. Steering valve
  • 10.17. External gear pumps
  • 10.18. External gear pumps
  • 10.19. Multiple gear pumps
  • 10.20. Towing
  • 10.21. Towing
  • 10.22. Towing
  • 10.23. Towing
  • 10.24. Towing
  • 10.25. Vibration control valve
  • 10.26. Outer gear motors nonreversible
  • 10.27. Check the hydraulic oil level
  • 10.28. Changing the hydraulic oil filter
  • 10.29. Changing hydraulic oil and breather filter
  • 11. Tests and adjustments
  • 11.1. Tests and adjustments
  • 12. Trouble shooting
  • 12.1. Trouble shooting
  • 13. Flushing and bleeding
  • 13.1. Flushing and bleeding
  • 13.2. Special tools for flushing
  • 13.3. Bleeding the vibration circuit
  • 13.4. Bleeding the vibration circuit
  • 13.5. Bleeding the vibration circuit
  • 14. Engine
  • 14.1. Engine
  • 14.2. Adjust the valve clearance
  • 14.3. Adjust the valve clearance
  • 14.4. Adjust the valve clearance
  • 14.5. Adjust the valve clearance
  • 14.6. Adjust the valve clearance
  • 14.7. Adjust the valve clearance
  • 14.8. Adjust the valve clearance
  • 14.9. Adjust the valve clearance
  • 14.10. Adjust the valve clearance
  • 14.11. Adjusting the control piston play
  • 14.12. Check the engine oil level
  • 14.13. Check the engine oil level
  • 14.14. Change the engine oil
  • 14.15. Change the engine oil filter cartridge
  • 14.16. Change the fuel filter cartridge
  • 14.17. Checking, cleaning the water separator
  • 14.18. Change the fuel prefilter cartridge
  • 14.19. Check the coolant level
  • 14.20. Checking the antifreeze concentration
  • 14.21. Change the coolant
  • 14.22. Checking the Vbelt, tighten, if necessary replace the Vbelt
  • 14.23. Check, clean, change the combustion air filter
  • 14.24. Replacing the crank case ventilation valve
  • 14.25. Check the engine mounts
  • 14.26. Electronic injector test EMR
  • 15. Air conditioning system
  • 15.1. Air conditioning system
  • 15.2. Servicing the Vbelt for the refrigerant compressor
  • 15.3. Servicing the Vbelt for the refrigerant compressor
  • 15.4. Servicing the Vbelt for the refrigerant compressor
  • 15.5. Servicing the Vbelt for the refrigerant compressor
  • 15.6. Service the air conditioning
  • 16. Replacing the cab window panes
  • 16.1. Replacing the cab window panes
  • 17. Replacing the travel control cable
  • 17.1. Replacing the travel control cable
  • 18. Drum
  • 18.1. Drum
  • 18.2. Special tools, drum (BW161AD4 to BW203AD4)
  • 19. Oscillating articulated joint
  • 19.1. Oscillating articulated joint
  • 19.2. Repair overview oscillating articulated joint
  • 19.3. Assembling the oscillating articulated joint
  • 19.4. Assembling the oscillating articulated joint
  • 20. Suppliers documentation
  • 20.1. Suppliers documentation
  • 20.2.
  • 20.3.
  • 20.4.
  • 20.5.
  • 20.6.
  • 20.7.
  • 20.8.
  • 20.9.
  • 20.10.
  • 20.11.
  • 20.12.
  • 20.13.
  • 20.14.
  • 20.15.
  • 20.16.
  • 20.17.
  • 20.18.
  • 21. Circuit diagrams
  • 21.1. Circuit diagrams
  • 22.
  • 22.1.
