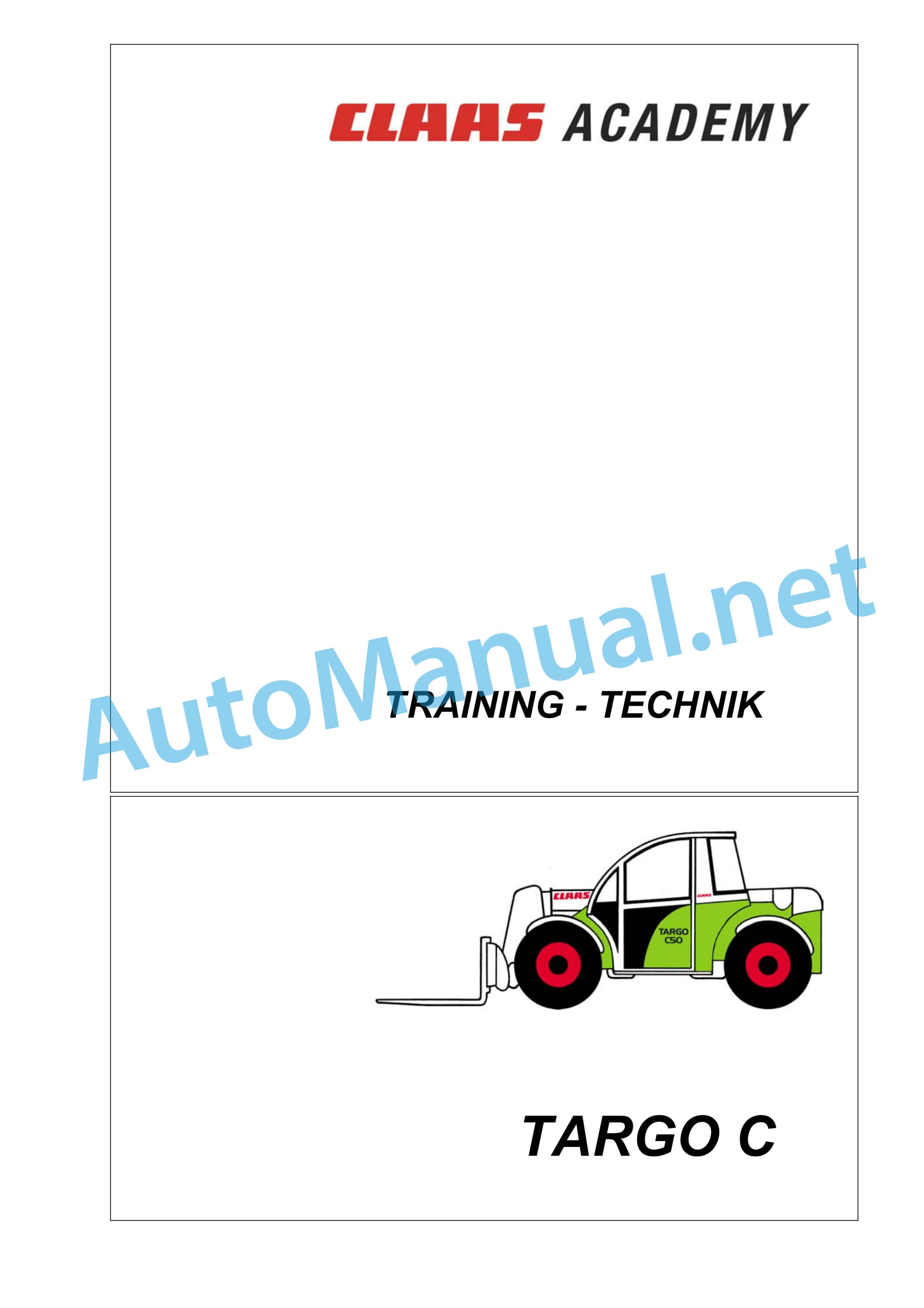

Claas TARGO C50 (518) Telehandlers Technical System DE

Description

File List:

– TARGO C 00 0298 689 0.pdf

TARGO C 00 0298 689 0.pdf

Table of Content:
2 Chapter 01 technical data
2.1 Drive scheme
3 Chapter 02 Operation
3.1 Cab and controls
3.2 Instruments and warning lights
3.3 Switch on the dashboard
3.4 Side console controls
3.5 Telescopic arm and device control
3.6 Controls for attachments
3.7 Driving the machine
3.8 Towing
4 Chapter 03 Safety/load display
4.1 Load display function
4.2 Setting load display
4.3 Load diagram
4.4 Calibration process
4.5 Testing load signal
4.6 Error diagnosis
4.7 Sensor load signal
5 Chapter 05 travel drive
5.1 Technical data
5.2 Hydrostatics
5.3 Sauer pump 90R NFPE
5.4 Measuring connections pump 90
5.5 Sauer engine 51
5.6 Measuring connections motor 51
5.7 Hydrostatics module (SUSMIC)
6 Chapter 07 Axles/Steering
6.1 Steering hydraulics
6.2 Steering function
6.3 Priority Storage Loading Valve
6.4 Steering unit
7 Chapter 08 Bremahydraulik
7.1 Service brake
7.2 Parking brake
7.3 Front axle brake
8 Chapter 09 Working hydraulics
8.1 Hydraulic system
8.2 Working hydraulics
9 Chapter 10 Electrics
9.1 Circuit diagram TARGO C
9.2 Legends
10 Chapter 15 Maintenance
11 last page inside
12 last page outside
