New Holland T4.75 PowerStar Tier 4B Final Tractor Service Manual 47712632

Description

• Model List:
  • T4.75 PowerStar Tier 4B Final Tractor

• 1. FourWheel Drive (4WD) system 23
• 1.1. Mechanical control 101
• 1.2. Electrohydraulic control 202
• 2. Front axle system 25

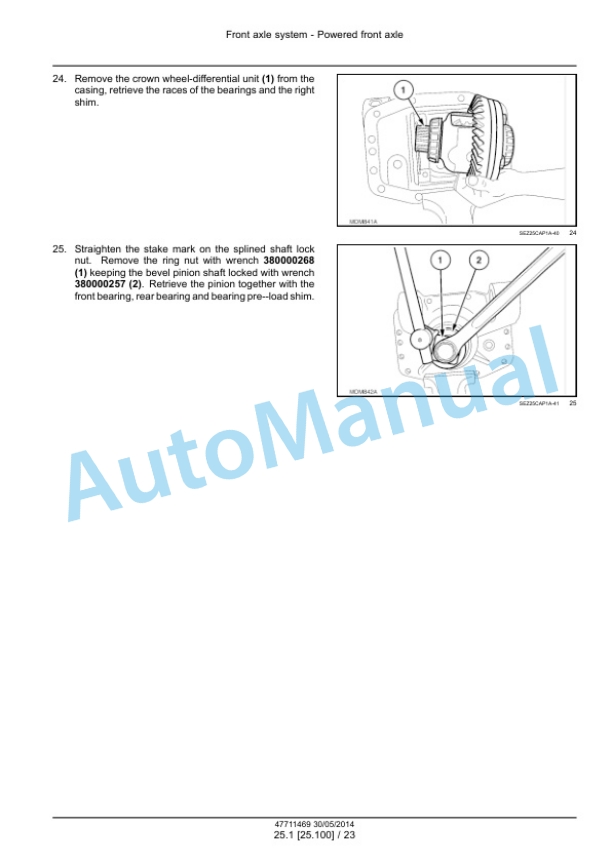

• 2.1. Powered front axle 100
• 2.2. Front bevel gear set and differential 102
• 2.3. Final drive hub, steering knuckles, and shafts 108
• 2.4. Nonpowered front axle 400
• 3. Rear axle system 27
• 3.1. Powered rear axle 100
• 3.2. Rear bevel gear set and differential 106
• 3.3. Planetary and final drives 120
• 4. Power TakeOff (PTO) 31
• 4.1. Rear mechanical control 101
• 4.2. Rear electrohydraulic control 104

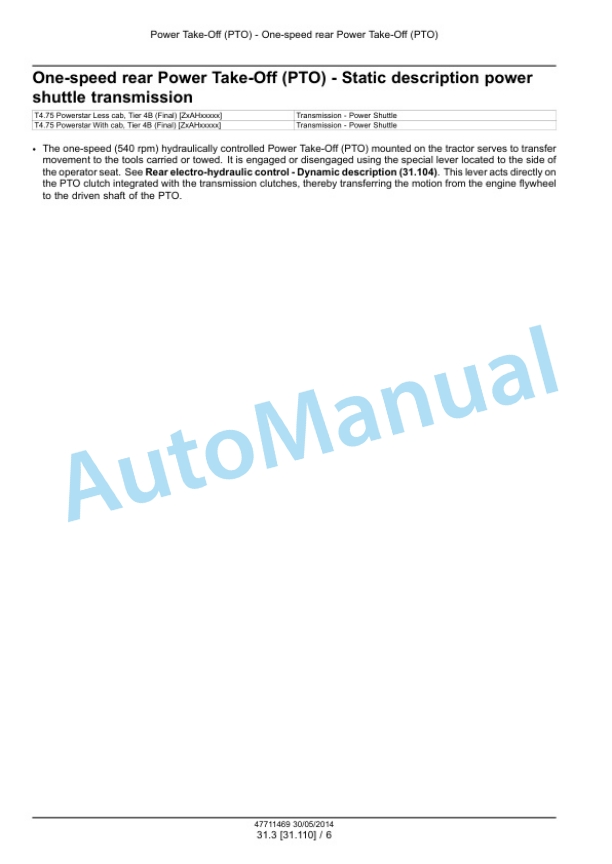

• 4.3. Onespeed rear Power TakeOff (PTO) 110

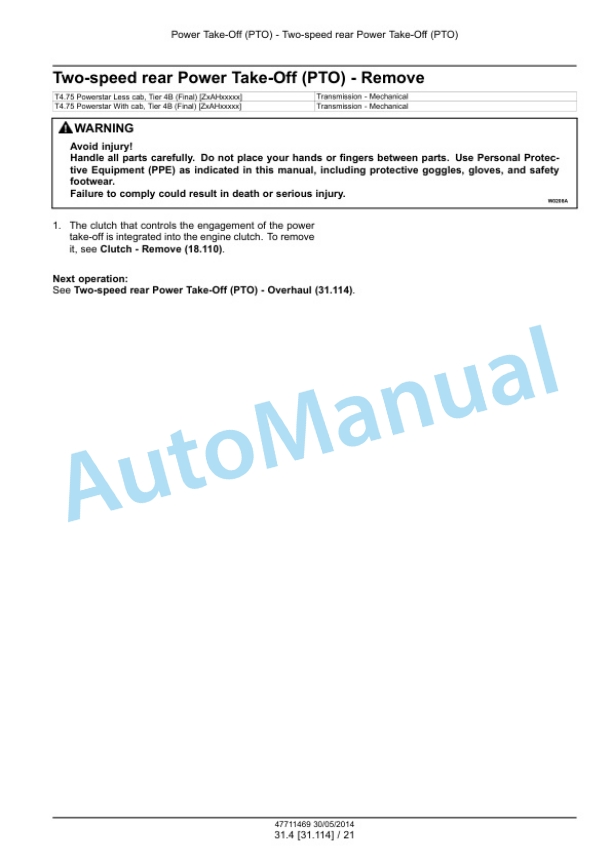

• 4.4. Twospeed rear Power TakeOff (PTO) 114
• 5. Brakes and controls 33
• 5.1. Hydraulic service brakes 202
• 5.2. Parking brake or parking lock 110
