New Holland T6.120, T6.140, T6.150, T6.155, T6.160, T6.165, T6.175, T6.140 AutoCommand, T6.150 AutoCommand, T6.160 AutoCommand Tier 4A Tractor Service Manual 47720747

Description

• Model List:
  • T6.120 Tier 4A Tractor
  • T6.140 Tier 4A Tractor
  • T6.150 Tier 4A Tractor
  • T6.155 Tier 4A Tractor
  • T6.160 Tier 4A Tractor
  • T6.165 Tier 4A Tractor
  • T6.175 Tier 4A Tractor
  • T6.140 AutoCommand Tier 4A Tractor
  • T6.150 AutoCommand Tier 4A Tractor
  • T6.160 AutoCommand Tier 4A Tractor

• 1. Electrical systems 55
• 1.1. Cab transmission controls 513
• 1.2. Transmission control system 024
• 1.3. Transmission speed sensors 020
• 1.4. Transmission pressure sensors 021
• 1.5. Transmission temperature sensors 022
• 1.6. Transmission position sensors 023
• 1.7. Ground speed control 610
• 1.8. Rear Power TakeOff (PTO) control system 048
• 1.9. Parking brake electrical system 031
• 1.10. Remote control valve electric control 035
• 1.11. Cab Heating, Ventilation, and AirConditioning (HVAC) controls 051
• 1.12. Heating, Ventilation, and AirConditioning (HVAC) control system 050

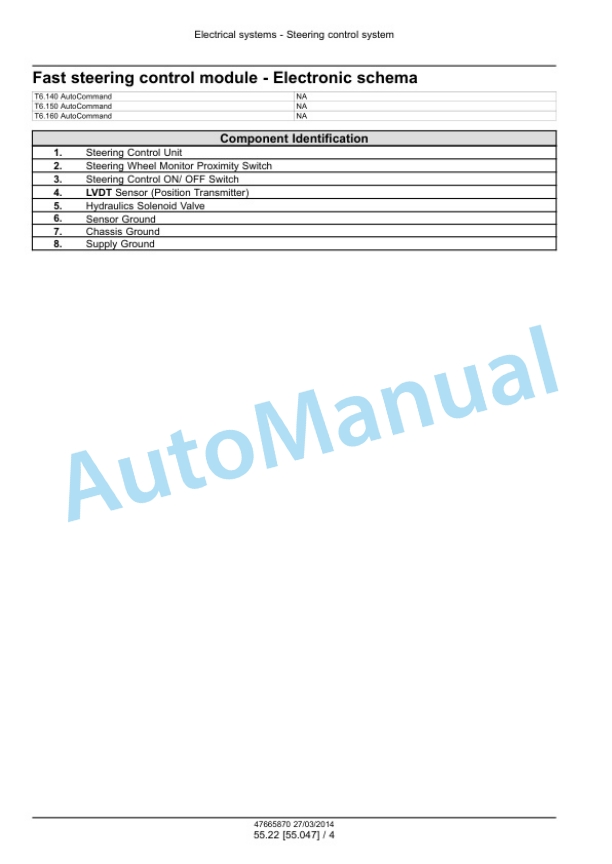

• 1.13. Steering control system 047
• 1.14. Rear threepoint hitch electronic control system 130
• 1.15. Rear threepoint hitch electronic control system 130

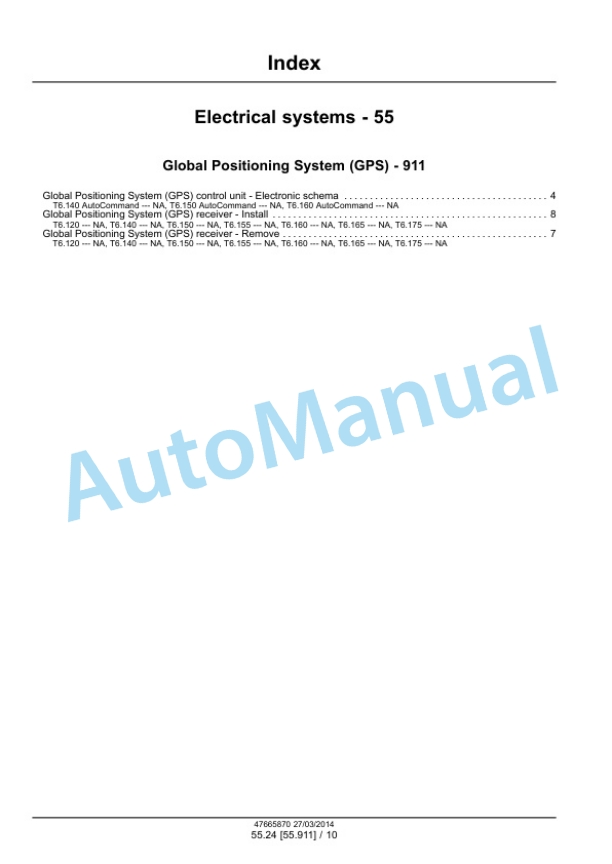

• 1.16. Global Positioning System (GPS) 911
• 1.17. External lighting switches and relays 405
• 1.18. Cab or platform harnesses and connectors 510
• 1.19. Warning indicators, alarms, and instruments 408
