New Holland T9.435, T9.480, T9.530, T9.565, T9.600, T9.645, T9.700 Tier 4B Final Tractor Service Manual 47924553

Description

• Model List:
  • T9.435 Tier 4B Final Tractor
  • T9.480 Tier 4B Final Tractor
  • T9.530 Tier 4B Final Tractor
  • T9.565 Tier 4B Final Tractor
  • T9.600 Tier 4B Final Tractor
  • T9.645 Tier 4B Final Tractor
  • T9.700 Tier 4B Final Tractor

• 1. Contents
• 2. INTRODUCTION
• 3. Engine 10
• 4. Power coupling 19
• 5. Transmission 21
• 6. Front axle system 25
• 7. Rear axle system 27
• 8. Power TakeOff (PTO) 31
• 9. Brakes and controls 33

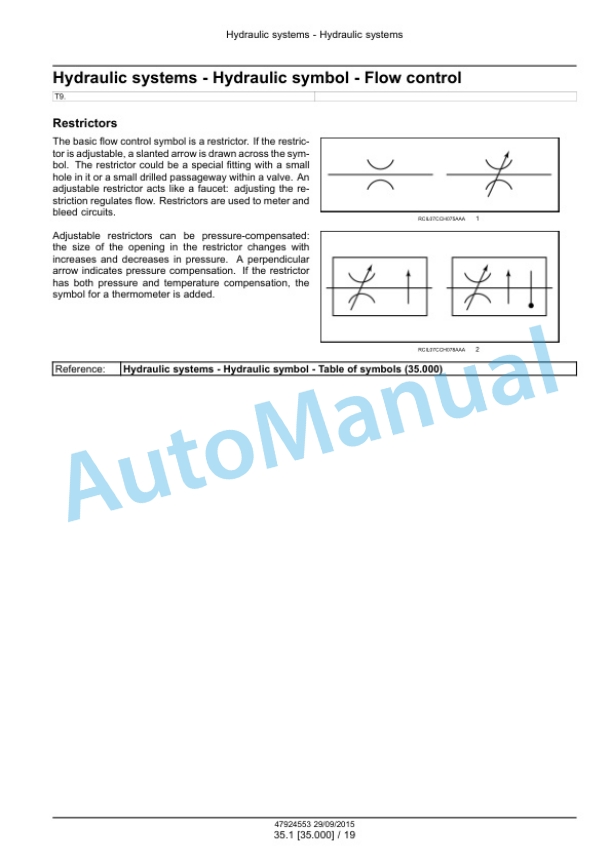

• 10. Hydraulic systems 35
• 11. Hitches, drawbars, and implement couplings 37
• 12. Frames and ballasting 39
• 13. Steering 41
• 14. Cab climate control 50

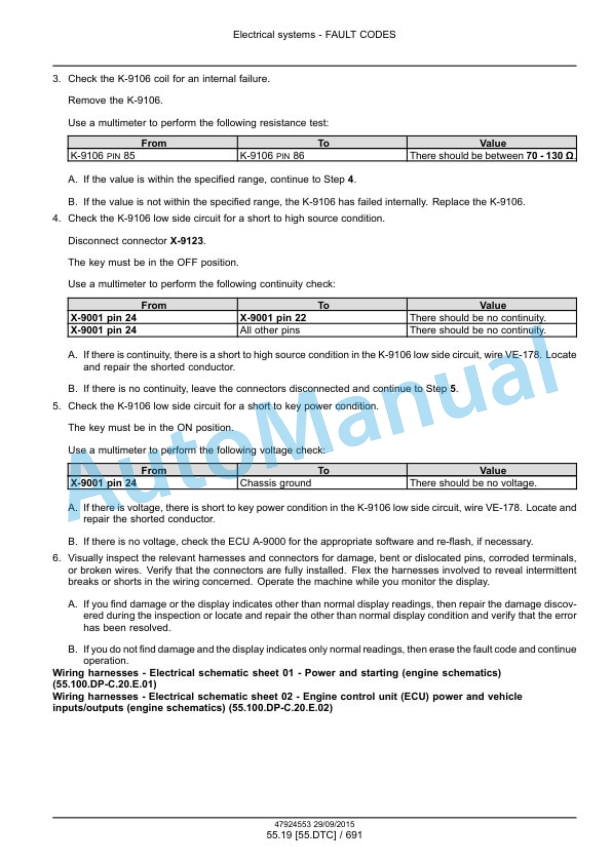

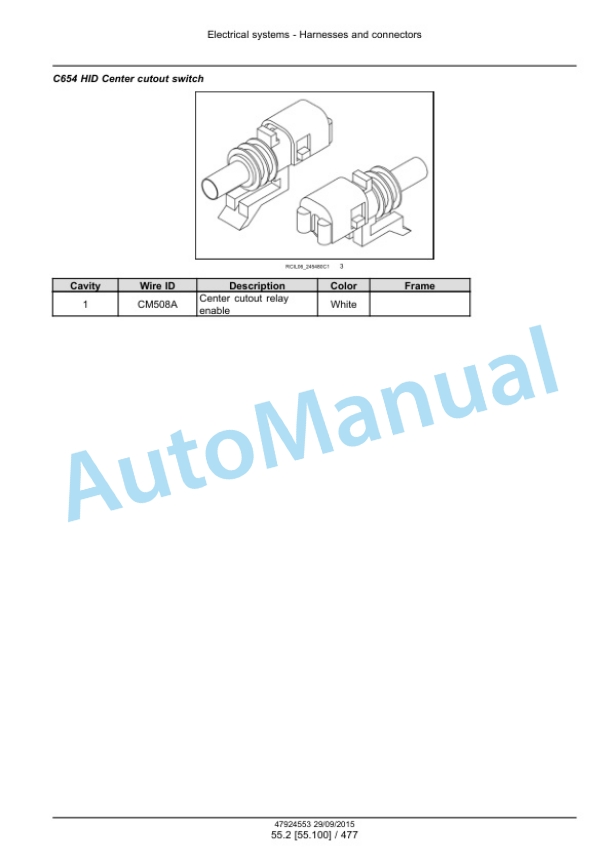

• 15. Electrical systems 55
• 16. Platform, cab, bodywork, and decals 90
• 17. SPECIAL TOOL INDEX
