Yanmar ViO15-2 Crawler Backhoe Parts Catalog Y00S4181

Description

• Model List:
  • ViO15-2 Crawler Backhoe

• 1. Reference Materials
• 2. Contents
• 3. LABEL(ROPS)
• 4. LABEL(CANOPY)
• 5. SAFETY LABEL(ROPS)
• 6. SAFETY LABEL(CANOPY)
• 7. SILENSER AIR CLEANER
• 8. ACCELERATOR
• 9. ENGINE MOUNT
• 10. RADIATOR MOUNT
• 11. FUEL TANK
• 12. FUEL LINE
• 13. BATTERY
• 14. ELECTRIC PART(WIRING)
• 15. ELECTRIC PART(EQUIPMENT)
• 16. TRAVEL ALARM
• 17. WARK LAMP
• 18. SPROCKET ROLLER
• 19. IDLER ADJUST
• 20. CRAWLER
• 21. CONTROL EQUIPMENT(LOCK LEVER STAND RIGHT)(A-SPEC.)
• 22. CONTROL EQUIPMENT(LOCK LEVER STAND RIGHT)(B-SPEC.)
• 23. CONTROL EQUIPMENT(LOCK LEVER STAND LEFT)(A-SPEC.)
• 24. CONTROL EQUIPMENT(LOCK LEVER STAND LEFT)(B-SPEC.)
• 25. CONTROL EQUIPMENT(TRACK LEVER LINK STAND)
• 26. CONTROL EQUIPMENT(OPERATION LEVER)
• 27. CONTROL EQUIPMENT(BLADE LEVER)
• 28. CONTROL EQUIPMENT(VARIABLE LEG LEVER)
• 29. CONTROL EQUIPMENT(SWING PEDAL)
• 30. CONTROL EQUIPMENT(LOW-HIGH PEDAL)
• 31. CONTROL EQUIPMENT(P.T.O. PEDAL)
• 32. CONTROL EQUIPMENT(P.T.O. LINK)
• 33. VALVE PLATE
• 34. TRACK FRAME
• 35. TURNING FRAME BEARING
• 36. COVER
• 37. STEP INSTRUMENT PANEL
• 38. SEAT SEAT BELT
• 39. SEAT MOUNT
• 40. HOOD(1)
• 41. HOOD(2)
• 42. ROPS CANOPY
• 43. CANOPY

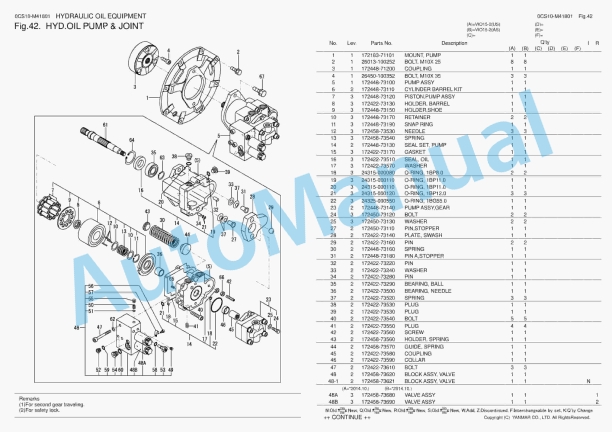

• 44. HYD.OIL PUMP JOINT
• 45. BOOM CYLINDER
• 46. ARM CYLINDER
• 47. BUCKET CYLINDER
• 48. SWING CYLINDER
• 49. BLADE CYLINDER
• 50. VARIABLE LEG WIDEN / SHORTEN CYLINDER
• 51. TRAVEL MOTOR
• 52. TURNING MOTOR
• 53. SWIVEL JOINT(Y SPEC.)
• 54. (51A)SWIVEL JOINT(N SPEC.)
• 55. CONTROL VALVE(1/7)

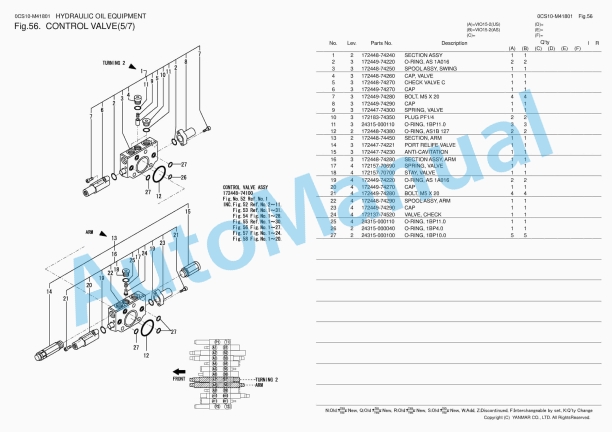

• 56. CONTROL VALVE(2/7)
• 57. CONTROL VALVE(3/7)
• 58. CONTROL VALVE(4/7)
• 59. CONTROL VALVE(5/7)
• 60. CONTROL VALVE(6/7)
• 61. CONTROL VALVE(7/7)
• 62. REMOTE CONTROL VALVE(A-SPEC.)
• 63. REMOTE CONTROL VALVE(B-SPEC.)
• 64. WAY VALVE
• 65. HYD. OIL TANK

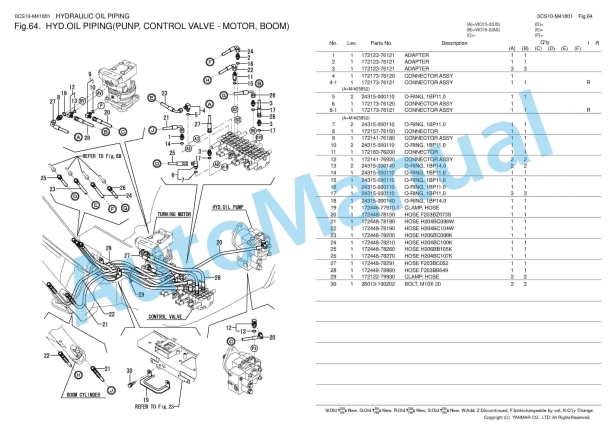

• 66. HYD.OIL PIPING(TANK – PUMP – CONTROL VALVE)
• 67. HYD.OIL PIPING(PUNP, CONTROL VALVE – MOTOR, BOOM)
• 68. HYD.OIL PIPING(CONTROL VALVE – SWIVEL JOINT, SWING CYLINDER)
• 69. HYD.OIL PIPING(RETURN)
• 70. HYD.OIL PIPING(TRACK FRAME)
• 71. HYD.OIL PIPING(BOOM)
• 72. HYD.OIL PIPING(P.T.O. ARM END)

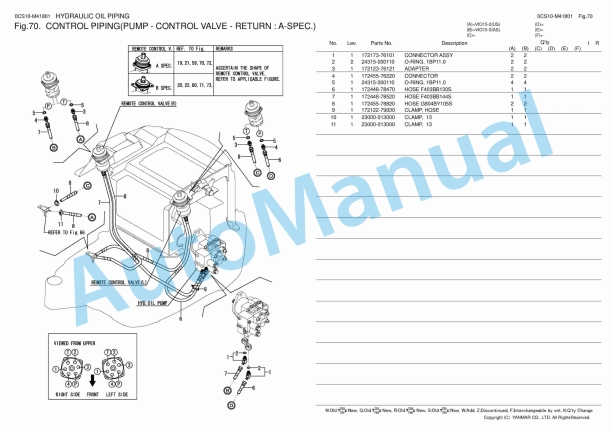

• 73. CONTROL PIPING(PUMP – CONTROL VALVE – RETURN A-SPEC.)
• 74. CONTROL PIPING(PUMP – CONTROL VALVE – RETURN B-SPEC.)
• 75. CONTROL PIPING(REMOTE C/V – 2WAY V. – CONTROL V. A-SPEC.)
• 76. CONTROL PIPING(REMOTE C/V – 2WAY V. – CONTROL V. B-SPEC.)
• 77. GREASING
• 78. BOOM BRACKET
• 79. BOOM
• 80. BUCKET ARM LINK
• 81. BUCKET
• 82. BLADE
• 83. Parts No. Index
