Yanmar ViO20-3 Excavator Parts Catalog 0CK10-M39703

Description

• Model List:
  • ViO20-3 Excavator

• 1. Reference Materials
• 2. Contents
• 3. LABEL(CABIN)(JP)(TO M3F000)
• 4. (1A)LABEL(CABIN)(JP)(FROM M3F001 TO M3F855)(T SPEC.)
• 5. (1B)LABEL(CABIN)(JP)(FROM M3F856)(Y SPEC.)
• 6. LABEL(CANOPY)(JP)(TO M3F000)
• 7. (2A)LABEL(CANOPY)(JP)(FROM M3F001)
• 8. (2B)LABEL(4P CANOPY)(JP)(TO M3F000)
• 9. (2C)LABEL(4P CANOPY)(JP)(FROM M3F001)
• 10. LABEL(QUICK COUPLER)(JP)
• 11. LABEL(CANOPY)(EX)(TO M3F000)
• 12. (4A)LABEL(CANOPY)(EX)(FROM M3F001)
• 13. LABEL(CRANE)(JP)(TO M3F000)
• 14. (5A)LABEL(CRANE)(JP)(FROM M3F001)
• 15. SAFETY LABEL(CABIN)(JP)
• 16. SAFETY LABEL(CANOPY)(JP)
• 17. (7A)SAFETY LABEL(4P CANOPY)(JP)
• 18. SAFETY LABEL(QUCK COUPLER)(JP)
• 19. SAFETY LABEL(CANOPY)(EX)
• 20. SAFETY LABEL(CRANE)(JP)
• 21. ACCESSORY
• 22. SUCTION PIPE EXHAUST PIPE
• 23. ACCELERATOR
• 24. ENGINE MOUNT
• 25. RADIATOR MOUNT
• 26. FUEL TANK
• 27. FUEL LINE
• 28. DUCT
• 29. BUTTERY
• 30. WIRING
• 31. (19A)WIRING(4P CANOPY)
• 32. WIRING(CRANE)
• 33. EQUIPMENT
• 34. EQUIPMENT(INDICATOR BOX)
• 35. EQUIPMENT(INDICATOR BOX)(IMMOBILIZER SPEC.)
• 36. EQUIPMENT(CRANE)(1)
• 37. EQUIPMENT(CRANE)(2)
• 38. QUICK COUPLER(SWITCH BOX)
• 39. WORK LAMP
• 40. CANOPY LAMP
• 41. HEATER
• 42. SPROCKET ROLLER
• 43. (30A)TRACK ROLLER(S SPEC.)
• 44. IDLER ADJUST
• 45. CRAWLER
• 46. CONTROL EQUIPMENT(LOCK LECER STAND)(RIGHT)
• 47. CONTROL EQUIPMENT(LOCK LEVER STAND)(LEFT)
• 48. CONTROL EQUIPMENT(TRAVEL LEVER LINK STAND)
• 49. CONTROL EQUIPMENT(OPERATION LEVER)
• 50. CONTROL EQUIPMENT(BLADE LEVER)
• 51. CONTROL EQUIPMENT(SWING PEDAL)
• 52. CONTROL EQUIPMENT(LOW-HIGH PEDAL)
• 53. CONTROL EQUIPMENT(P.T.O.PEDAL)
• 54. CONTROL EQUIPMENT(P.T.O.LINK)
• 55. CONTROL VALVE PLATE(TO M37000)
• 56. (42A)CONTROL VALVE PLATE(FROM M37001)
• 57. TURNING FRAME(TO M37000)
• 58. (43A)TURNING FRAME(FROM M37001)
• 59. TRACK FRAME TURNING BEARING
• 60. COVER(FRAME)(TO M37000)
• 61. (45A)COVER(FRAME)(FROM M37001)
• 62. COVER(AROUND CONTROL)
• 63. COVER(CABIN)
• 64. COVER(CANOPY)
• 65. COVER(BOOM)
• 66. COVER(CRANE)
• 67. STEP(CABIN SPEC.)
• 68. STEP(CANOPY SPEC.)
• 69. (52A)STEP(4P CANOPY SPEC.)
• 70. INSTRUMENT PANEL
• 71. SEAT SEAT MOUNT(CABIN)(TO M3F494)
• 72. SEAT SEAT MOUNT(CANOPY)(TO M3F494)
• 73. SEAT MOUNT(CANOPY)(CRANE)(TO M3F494)
• 74. (56A)SEAT(FROM M3F495)
• 75. (56B)SEAT MOUNT(CABIN)(FROM M3F495)
• 76. (56C)SEAT MOUNT(CANOPY)(FROM M3F495)
• 77. (56D)SEAT MOUNT(CANOPY)(CRANE)(FROM M3F495)
• 78. (56E)SEAT BELT(FROM M3F495)
• 79. BONNET(1)
• 80. BONNET(2)
• 81. CABIN(ACCESSORY)(T SPEC.)(TO M3B681)
• 82. CABIN(BODY)
• 83. CABIN(FRONT GLASS)
• 84. CABIN(SIDE DOOR)
• 85. CABIN(JP SPEC. ACCESSORY)
• 86. (64A)CABIN(ACCESSORY)(T SPEC.)(FROM M3B682 TO M3F855)
• 87. (64B)CABIN(EXTERIOR)
• 88. (64C)CABIN(INTERIOR)
• 89. (64D)CABIN(GLASS)

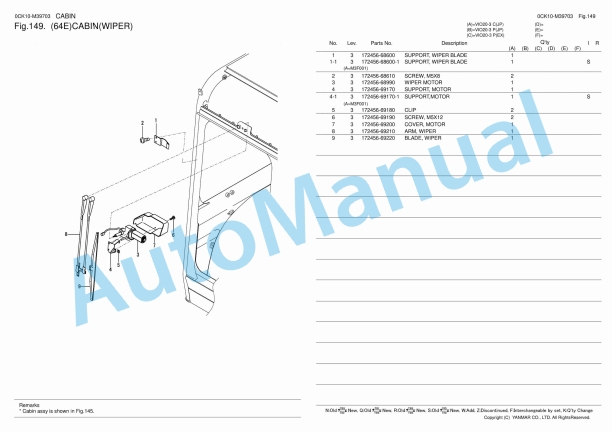

• 90. (64E)CABIN(WIPER)
• 91. (64F)CABIN(ELECTRIC PARTS)
• 92. (64G)CABIN DOOR
• 93. (64H)CABIN(FRONT GLASS)
• 94. (64I)CABIN(ACCESSORY)(Y SPEC.)(FROM M3F856)
• 95. CANOPY
• 96. (65A)4P CANOPY
• 97. HYD.OIL PUMP JOINT(TO M36239)
• 98. (66A) HYD.OIL PUMP JOINT(FROM M36240)
• 99. HYD.OIL PUMP JIONT(QUICK COUPLER SPEC.)(TO M36239)
• 100. (67A)HYD. OIL PUMP JOIMT(QUICK COUPLER SPEC.)(FROM M36240)
• 101. BOOM CYLINDER(CABIN SPEC.)(Y SPEC.)
• 102. (68A)BOOM CYLINDER(CABIN SPEC.)(K SPEC.)
• 103. BOOM CYLINDER(CANOPY SPEC.)(Y SPEC.)
• 104. (69A)BOOM CYLINDER(CANOPY SPEC.)(K SPEC.)
• 105. ARM CYLINDER(Y SPEC.)
• 106. (70A)ARM CYLINDER(K SPEC.)
• 107. BUCKET CYLINDER(Y SPEC.)
• 108. (71A)BUCKET CYLINDER(K SPEC.)
• 109. BUCKET CYLINDER(Q SPEC.)(Y SPEC.)
• 110. (72A)BUCKET CYLINDER(Q SPEC.)(K SPEC.)
• 111. SWING CYLINDER(Y SPEC.)
• 112. (73A)SWING CYLINDER(K SPEC.)
• 113. BLADE CYLINDER
• 114. HITCH CYLINDER
• 115. TRAVEL MOTOR
• 116. (76A)TRAVEL MOTOR(B)
• 117. TURNING MOTOR
• 118. SWIVEL JOINT(Y SPEC.)(TO M39318)
• 119. (78A)SWIVEL JOINT(N SPEC.)(FROM M39319)

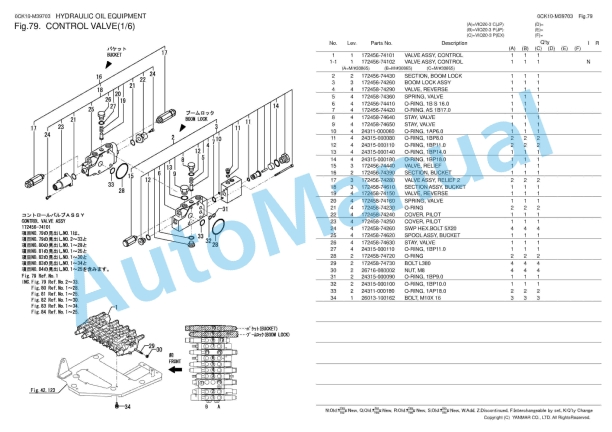

• 120. CONTROL VALVE(1/6)
• 121. CONTROL VALVE(2/6)
• 122. CONTROL VALVE(3/6)
• 123. CONTROL VALVE(4/6)
• 124. CONTROL VALVE(5/6)
• 125. CONTROL VALVE(6/6)
• 126. REMOTE CONTROL VALVE
• 127. ROTARY VALVE(4-WAY SPEC.)
• 128. SOLENOID VALVE(CRANE SPEC.)
• 129. HOLD VALVE(BOOM CRANE SPEC.)
• 130. HOLD VALVE(ARM CRANE SPEC.)
• 131. OIL COOLER
• 132. HYD.OIL TANK
• 133. HYD.OIL PIPING(TANK – PUMP – CONTROL VALVE)
• 134. HYD.OIL PIPING(PUMP, CONTROL VALVE – TURNING MOTOR)
• 135. HYD.OIL PIPING(CONTROL VALVE – SWIVEL JOINT, SWING CYLINDER)
• 136. HYD.OIL PIPING(RETURN)
• 137. HYD.OIL PIPING(P.T.O. FRAME END)
• 138. HYD.OIL PIPING(TRACK FRAME)

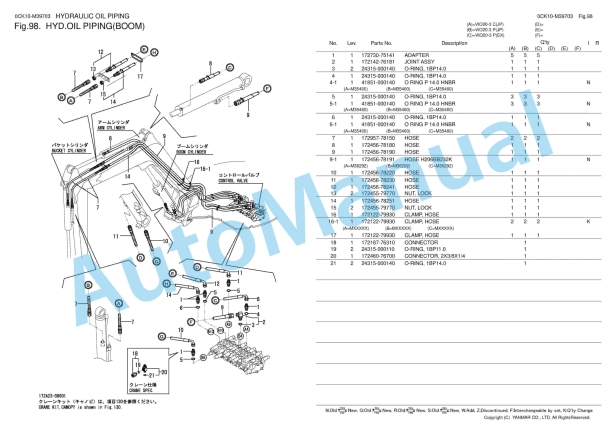

• 139. HYD.OIL PIPING(BOOM)
• 140. HYD.OIL PIPING(P.T.O. ARM END)
• 141. HYD.OIL PIPING(QUICK COUPLER)
• 142. CONTROL PIPING(PUMP – REMOTE CONTROL VALVE – RETURN)
• 143. CONTROL PIPING(REMOTE CONTROL V. – CONTROL V. STD.,2-WAY SPEC.)
• 144. (102A)CONTROL PIPING(REMOTE C/V-C/VSTD.,2-WAY CRANE SPEC.)
• 145. CONTROL PIPING(REMOTE CONTROL V. – ROTARY V. 4-WAY SPEC.)
• 146. CONTROL PIPING(ROTARY V. – CONTROL V. 4-WAY SPEC.)
• 147. CONTROL PIPING(4-WAY V. – CONTROL V. MULTI AND CRANE SPEC.)
• 148. CONTROL PIPING(HOLD VALVE CRANE SPEC.)
• 149. GREASING
• 150. BOOM
• 151. BOOM(CRANE SPEC.)
• 152. BOOM BRACKET
• 153. ARM
• 154. ARM(QUICK HITCH SPEC.)
• 155. ARM(CRANE SPEC.)
• 156. BUCKET ARM LINK
• 157. BUCKET ARM LINK(CRANE SPEC.)
• 158. QUICK HITCH
• 159. BUCKET
• 160. HOOK(CRANE SPEC.)
• 161. STAY(CRANE SPEC.)
• 162. BLADE
• 163. REARVIEW MIRROR KIT(OPTIONAL)
• 164. WAY MULTI VALVE KIT(OPTIONAL)
• 165. CRANE KIT(OPTIONAL)
• 166. TRAVEL ALARM KIT(OPTIONAL)
• 167. KIT(OPTIONAL)
• 168. IMMOBILIZER KIT(OPTIONAL)
• 169. SEAT KIT(OPTIONAL)(REPAIR PARTS)
• 170. SEAT KIT(CRANE)(OPTIONAL)(REPAIR PARTS)
• 171. Parts No. Index
