Yanmar ViO35-2 Crawler Backhoe Parts Catalog 0CK10-M37503

Description

• Model List:
  • ViO35-2 Crawler Backhoe

• 1. Reference Materials
• 2. Contents
• 3. LABEL(CABIN)(JP)
• 4. LABEL(CANOPY)(JP)
• 5. LABEL(ROPS CANOPY)(JP)
• 6. LABEL(QUICK HITCH)(JP)
• 7. LABEL(FORESTRY)(JP)
• 8. LABEL(CABIN)(EX)
• 9. LABEL(CANOPY)(EX)
• 10. SAFETY LABEL(CABIN)(JP)
• 11. SAFETY LABEL(CANOPY)(JP)
• 12. SAFETY LABEL(ROPS CANOPY)(JP)
• 13. SAFETY LABLE(QUICK HITCH)(JP)
• 14. SAFETY LABEL(FORESTRY)(JP)
• 15. SAFETY LABEL(CABIN)(EX)
• 16. SAFETY LABEL(CANOPY)(EX)
• 17. ACCESSORY
• 18. SUCTION PIPE EXHAUST PIPE
• 19. ACCELERATOR
• 20. ONE-TOUCH DECEL(OPTIONAL)
• 21. ENGINE MOUNT(STANDARD PREVIOUS, A/C SPEC. ROPS CANOPY SPEC.)
• 22. ENGINE MOUNT(STANDARD NEW)
• 23. RADIATOR MOUNT(STANDARD PREVIOUS 1 A/C SPEC.)
• 24. RADIATOR MOUNT(STANDARD PREVIOUS 2)
• 25. RADIATOR MOUNT(STANDARD NEW)
• 26. RADIATOR,OIL COOLER SUB-TANK(STANDARD PREVIOSU 1 A/C SPEC.)
• 27. RADIATOR,OIL COOLER SUB-TANK(STANDARD PREVIOUS 2)
• 28. RADIATOR,OIL COOLER SUB-TANK(STANDARD NEW)
• 29. FUEL TANK
• 30. FUEL LINE
• 31. BATTERY
• 32. ELECTRIC PART(WIRING)(PREVIOUS)
• 33. ELECTRIC PART(WIRING)(NEW)
• 34. ELECTRIC PART(WIRING)(FORESTRY SPEC.)
• 35. ELECTRIC PART(EQUIPMENT)(CABIN)
• 36. ELECTRIC PART(EQUIPMENT)(A/C SPEC.)
• 37. ELECTRIC PART(EQUIPMENT)(CANOPY)
• 38. ELECTRIC PART(EQUIPMENT)(QUICK HITCH SPEC.)
• 39. ELECTRIC PART(EQUIPMENT)(FORESTRY SPEC.)
• 40. WORK LAMP
• 41. CANOPY LAMP
• 42. HEATER(CABIN)
• 43. HEATER(A/C SPEC.)
• 44. HEATER(CANOPY)(OPTIONAL)
• 45. RADIO(OPTIONAL)
• 46. AIR CONDITIONER(ENGINE RELATED)
• 47. AIR CONDITIONER(CONDENSER RELATED)
• 48. AIR CONDITIONER(CABIN RELATED)
• 49. AIR CONDITIONER(PIPING)
• 50. SPROCKET ROLLER
• 51. IDLER ADJUST
• 52. CRAWLER
• 53. CONTROL EQUIPMENT(LOCK LEVER STAND)(RIGHT)
• 54. CONTROL EQUIPMENT(LOCK LEVER STAND)(LEFT)
• 55. CONTROL EQUIPMENT(TRAVEL LEVER LINK STAND)
• 56. CONTROL EQUIPMENT(OPERATION LEVER)
• 57. CONTROL EQUIPMENT(OPERATION LEVER)(FORESTRY SPEC.)
• 58. CONTROL EQUIPMENT(BLADE LEVER)
• 59. CONTROL EQUIPMENT(SWING PEDAL)
• 60. CONTROL EQUIPMENT(LOW-HIGH PEDAL)
• 61. CONTROL EQUIPMENT(P.T.O. PEDAL)(ELECTLICAL SPEC.)
• 62. CONTROL EQUIPMENT(P.T.O. PEDAL)(FORESTRY MECHANIVCAL SPEC.)
• 63. CONTROL EQUIPMENT(P.T.O. LINK)(ELECTRICAL SPEC.)
• 64. CONTROL EQUIPMENT(P.T.O. LINK)(FORESTRY MECHANICAL SPEC.)
• 65. CONTROL VALVE PLATE
• 66. VALVE PLATE(FORESTRY SPEC.)
• 67. TURNING FRAME(PREVIOUS)
• 68. TURNING FRAME(NEW)
• 69. TRACK FRAME TURNING BEARING
• 70. TURNING PINION TURNING BEARING(FORESTRY SPEC.)
• 71. COVER(FRAME)
• 72. COVER(FRAME)(FORESTRY SPEC.)
• 73. COVER(AROUND CONTROL)
• 74. COVER(CABIN)
• 75. COVER(CANOPY)
• 76. COVER(BOOM)
• 77. STEP
• 78. SETP(FORESTRY SPEC.)
• 79. INSTRUMENT PANEL
• 80. SEAT SEAT MOUNT(CABIN)
• 81. SEAT SEAT MOUNT(A/C SPEC.)
• 82. SEAT SEAT MOUNT(STANDARD CANOPY SPEC.)
• 83. SEAT SEAT MOUNT(ROPS CANOPY FORESTRY MECHANIVCAL SPEC.)
• 84. SEAT SEAT MOUNT(CABIN,FORESTRY SPEC.)
• 85. SEAT SEAT MOUNT(CANOPY,FORESTRY ELECTRICAL SPEC.)
• 86. BONNET(1)
• 87. BONNET(2)(PREVIOUS)
• 88. BONNET(2)(NEW)
• 89. CABIN(BODY)
• 90. CABIN(GLASS)
• 91. CABIN(ACCESSORY)
• 92. CABIN(ELECTRIC PART)
• 93. CABIN(FORESTRY SPEC.)
• 94. CABIN DOOR(FRONT)
• 95. CABIN DOOR(REAR)
• 96. CANOPY(ROPS)
• 97. CANOPY(STANDARD)
• 98. CANOPY(FORESTRY SPEC.)
• 99. HYD.OIL PUMP JOINT(STANDARD SPEC.)
• 100. HYD.OIL PUMP JOINT(QUICK HITCH SPEC.)
• 101. BOOM CYLINDER(CABIN ROPS CANOPY SPEC.)
• 102. BOOM CYLINDER(STANDARD CANOPY SPEC.)
• 103. ARM CYLINDER
• 104. BUCKET CYLINDER(STANDARD SPEC.)
• 105. BUCKET CYLINDER(QUICK HITCH SPEC.)
• 106. SWING CYLINDER
• 107. BLADE CYLINDER
• 108. HITCH CYLINDER
• 109. GRAPPLE CYLINDER
• 110. TRAVEL MOTOR
• 111. TURNING MOTOR(A)
• 112. (109A)TURNING MOTOR(B)
• 113. TURNING MOTOR(GRAPPLE)(FORESTRY SPEC.)(PAINTED COLOR BLUE)
• 114. (110A)TURNING MOTOR(GRAPPLE FORESTRY)(PAINTED COLOR BLACK)
• 115. SWIVEL JOINT
• 116. SWIVEL JOINT(GRAPPLE)(FORESTRY SPEC.)
• 117. CONTROL VALVE(BUCKET BOOM 1)
• 118. CONTROL VALVE(BOOM 2 TRAVEL RIGHT)
• 119. CONTROL VALVE(P PORT TRAVEL LEFT)
• 120. CONTROL VALVE(SWING ARM)
• 121. CONTROL VALVE(P.T.O. T/P PORT)
• 122. CONTROL VALVE(TURNING BLADE)
• 123. LOW-HIGH VALVE(FORESTRY SPEC.)
• 124. VALVE(FORESTRY ELECTRICAL SPEC.)
• 125. VALVE(FORESTRY MECHANICAL SPEC.)
• 126. REMOTE CONTROL VALVE(STANDARD TO M/25500,4-WAY SPEC.)
• 127. REMOTE CONTROL VALVE(STANDARD FROM M/25501,2-WAY SPEC.)
• 128. ROTARY VALVE(4-WAY SPEC.)
• 129. HYD.OIL TANK(STD. TO 25500)
• 130. HYD.OIL TANK(STD. FROM M25501)
• 131. HYD.OIL TANK(A/C SPEC.)
• 132. HYD.OIL PIPING(TANK – PUMP – VALVE)
• 133. HYD.OIL PIPING(PUMP, VALVE – TURNING MOTOR)
• 134. HYD.OIL PIPING(VALVE – SWIVEL, SWING)

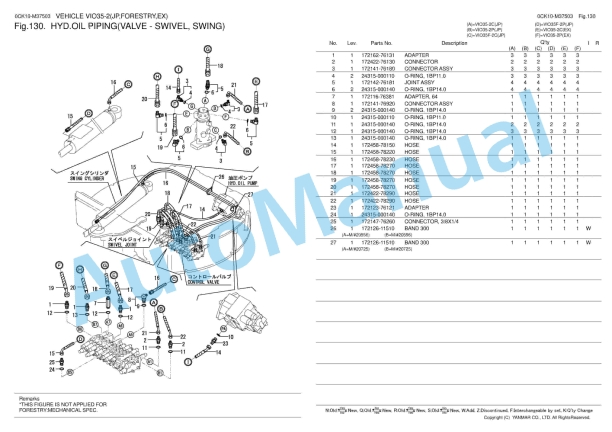

• 135. HYD.OIL PIPING(VALVE – SWIVEL, SWING)(FORESTRY MECHANICAL SPEC.)
• 136. HYD.OIL PIPING(RETURN)
• 137. HYD.OIL PIPING(P.T.O.,FRAME END)
• 138. HYD.OIL PIPING(TRACK FRAME)
• 139. HYD.OIL PIPING(BOOM)
• 140. HYD.OIL PIPING(P.T.O.,ARM END)
• 141. HYD.OIL PIPING(QUICK HITCH)
• 142. HYD.OIL PIPING(GRAPPLE,1)(FORESTRY ELECTRICAL SPEC.)
• 143. HYD.OIL PIPING(GRAPPLE,2)(FORESTRY ELECTRICAL SPEC.)
• 144. HYD.OIL PIPING(GRAPPLE,3)(FORESTRY ELECTRICAL SPEC.)
• 145. HYD.OIL PIPING(GRAPPLE,1)(FORESTRY MECHANICAL SPEC.)
• 146. HYD.OIL PIPING(GRAPPLE,2)(FORESTRY MECHANICAL SPEC.)
• 147. HYD.OIL PIPING(GRAPPLE,3)(FORESTRY MECHANICAL SPEC.)
• 148. HYD.OIL PIPING(WINCH)(FORESTRY SPEC.)
• 149. CONTROL PIPING(PUMP – VALVE – RETURN)
• 150. CONTROL PIPING(REMOTE CONTROL V. – CONTROL V. STANDARD SPEC.)
• 151. CONTROL PIPING(REMOTE CONTROL V. – 4-WAY MULTI V. MULTI CHANGE)
• 152. CONTROL PIPING(4-WAY MULTI V. – CONTROL V. MULTI CHANGE SPEC.)
• 153. GREASING
• 154. BOOM BRACKET
• 155. BOOM
• 156. BOOM(FORESTRY SPEC.)
• 157. ARM(STANDARD SPEC.)
• 158. ARM(QUICK HITCH SPEC.)
• 159. ARM(LONG SPEC.)
• 160. ARM(FORESTRY SPEC.)
• 161. BUCKET ARM LINK
• 162. QUICK HITCH
• 163. BUCKET(S-TYPE)
• 164. BUCKET(H-TYPE)(ATTACHMENT)
• 165. TURNING TABLE(FORESTRY ELECTRICAL SPEC.)
• 166. TURNING TABLE(FORESTRY MECHANICAL SPEC.)
• 167. WINCH(FORESTRY SPEC.)
• 168. (163A)WINCH(A MAIN BODY INNER PART)
• 169. (163B)WINCH(A ORBIT MOTOR INNER PART)
• 170. BLADE
• 171. ONE-TOUCH DECEL KIT(OPTIONAL)
• 172. RADIO KIT(OPTIONAL)
• 173. TRAVEL ALARM KIT(OPTIONAL)
• 174. WAY MULTI VALVE KIT(OPTIONAL)
• 175. WAY MULTI VALVE KIT(OPTIONAL)
• 176. KIT(STANDARD ARM QUICK HITCH SPEC.)(OPTIONAL)
