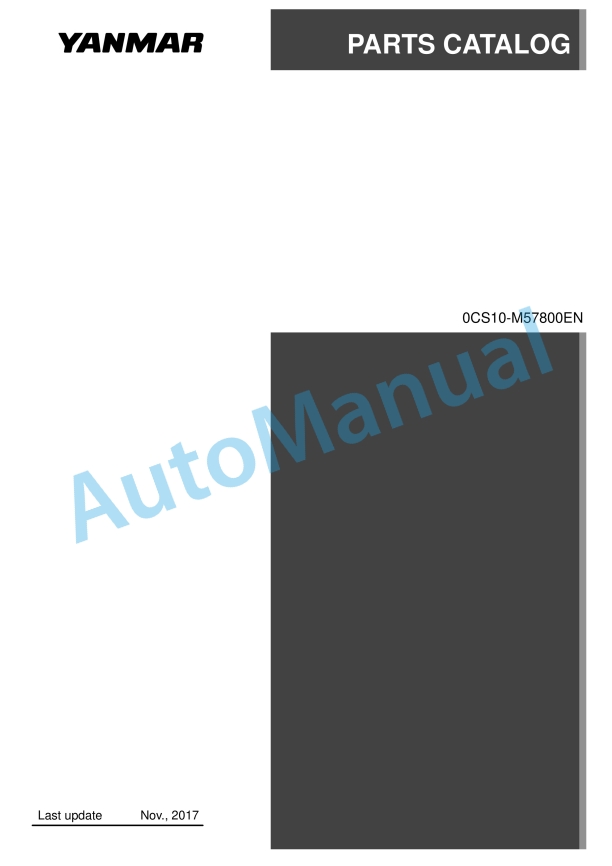

Yanmar ViO35-6A Excavator Parts Catalog

Description

• Model List:
  • ViO35-6A Excavator

• 1. Reference Materials
• 2. Contents
• 3. LABEL(EXTERIOR)(TO MAF000)
• 4. (1A)LABEL(EXTERIOR)(FROM MAF001)
• 5. LABEL(BONNET INSIDE)
• 6. LABEL(CANOPY)(TO MAF000)
• 7. (3A)LABEL(CANOPY)(FROM MAF001)
• 8. (3B)LABEL(CANOPY)(ANGLE BLADE SPEC.)(TO MAF000)
• 9. (3C)LABEL(CANOPY)(ANGLE BLADE SPEC.)(FROM MAF001)
• 10. LABEL(CABIN)(TO MAF000)
• 11. (4A)LABEL(CABIN)(FROM MAF001)
• 12. (4B)LABEL(CABIN)(ANGLE BLADE SPEC.)(TO MAF000)
• 13. (4C)LABEL(CABIN)(ANGLE BLADE SPEC.)(FROM MAF001)
• 14. LABEL(QUICK COUPLER)
• 15. CASE(TOOL)
• 16. MUFFLER
• 17. AIR CLEANER
• 18. ACCELERATOR
• 19. ENGINE MOUNT
• 20. RADIATOR SHURAUD
• 21. RADIATOR OIL COOLER
• 22. DUCT
• 23. FUEL TANK
• 24. FUEL PIPING
• 25. BATTERY
• 26. AROUND THE ENGINE(TO M61125)
• 27. (17A)AROUND THE ENGINE(FROM M61126)
• 28. HORN
• 29. SEAT MOUNT
• 30. GUIDE HARNESS
• 31. STARTER SWITCH
• 32. ELECTRIC PARTS(A/D)
• 33. TRAVEL BUZZER
• 34. QUICK COUPLER(SWITCH BOX)
• 35. CANOPY LAMP
• 36. WORK LAMP
• 37. INSTRUMENT PANEL
• 38. ELECTRIC PARTS(ESS)
• 39. HEATER
• 40. BRACKET CONTROL
• 41. (30A)ELECTRIC PARTS(P.T.O.)(ANGLE BLADE SPEC.)
• 42. (30B)ELECTRIC PARTS(ANGLE BLADE LEVER)(ANGLE BLADE SPEC.)
• 43. (30C)ELECTRIC PARTS(ANGLE BLADE LEVER)(ANGLE BLADE ESS SPEC.)
• 44. AIR CONDITIONER(ELECTRIC PARTS)
• 45. AIR CONDITIONER(UNIT)
• 46. (32A)AIR CONDITIONER(UNIT INNER PARTS)
• 47. AIR CONDITIONER(PIPING)
• 48. AIR CONDITIONER(ENGINE RELATED)
• 49. AIR CONDITIONER(CONDENSER)
• 50. HEATER(UNIT)
• 51. (36A)HEATER(UNIT INNETR PARTS)
• 52. HEATER(PIPING)
• 53. DUCT(AIR CONDITIONER HEATER)
• 54. SPROCKET
• 55. IDLER ADJUST(RUBBER CRAWLER SPEC.)
• 56. IDLER ADJUST(IRON CRAWLER SPEC.)
• 57. TRACK ROLLER(Y SPEC.)(TO M61258)
• 58. (42A)TRACK ROLLER(K SPEC.)(FROM M61259)
• 59. CARRIER ROLLER
• 60. CRAWLER
• 61. (44A)CRAWLER(T SPEC.)
• 62. MOUNT(VALVE)
• 63. TRAVEL LEVER(FIXED TYPE)
• 64. (46A)TRAVEL PEDAL(FOLDING TYPE)
• 65. SWING PEDAL
• 66. PEDAL COVER
• 67. BLADE LEVER
• 68. (49A)CONTROL EQUIPMENT(BLADE LEVER)(ANGLE BLADE SPEC.)
• 69. ARMREST
• 70. LOCK LEVER STAND
• 71. TRAVEL FRAME
• 72. CRAWLER GUARD
• 73. COUNTER WEIGHT
• 74. TURNING FRAME
• 75. TURNING BEARING
• 76. COVER(MULTI)
• 77. UPPER COVER
• 78. COVER(TURNING FRAME)
• 79. COVER(TRAVEL FRAME)
• 80. GUARD(FRAME)
• 81. COVER(FRAME FRONT)
• 82. STEP(CABIN)
• 83. STEP(CANOPY)
• 84. COVER(LEVER)
• 85. COVER(MONITOR)(CANOPY)
• 86. COVER(MONITOR)(CABIN)
• 87. SEAT MOUNT
• 88. SEAT MOUNT(COVER)
• 89. SEAT
• 90. SEAT(INNER PARTS)
• 91. HANDRAIL
• 92. BONNET(REAR)
• 93. BONNET(FRONT)
• 94. BONNET(LEFT)
• 95. BONNET(RIGHT)
• 96. CANOPY
• 97. MOUNT
• 98. WINDOW WASHER
• 99. CABIN(BODY)
• 100. (80A)CABIN(DOOR)(1)
• 101. (80B)CABIN(DOOR)(2)
• 102. (80C)CABIN(FRONT WINDOW)(1)
• 103. (80D)CABIN(FRONT WINDOW)(2)
• 104. (80E)CABIN(GLASS)
• 105. (80F)CABIN(REAR COVER)
• 106. (80G)CABIN(ELECTRIC PARTS)
• 107. (80H)CABIN(ACCESSORY)
• 108. REARVIEW MIRROR
• 109. MOUNT(CABIN)
• 110. BOX(CABINE HEATER SPEC.)
• 111. HYDRAULIC PUMP MOUNT
• 112. HYDRAULIC PUMP(QUICK COUPLER SPEC.)
• 113. HYDRAULIC PUMP(ESS SPEC.)
• 114. (86A)HYDRAULIC PUMP(STANDARD SPEC.)
• 115. BOOM CYLINDER(Y SPEC.)
• 116. (87A)BOOM CYLINDER(K SPEC.)

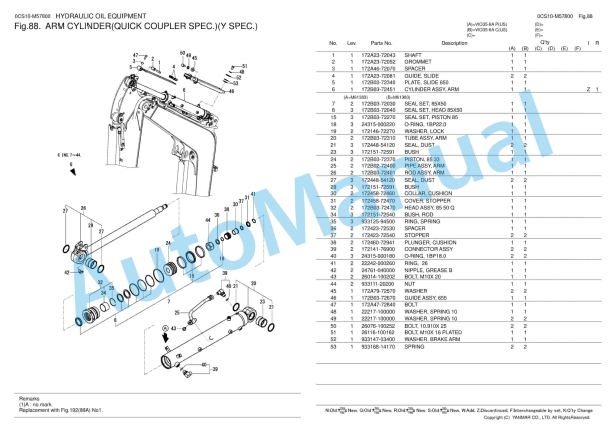

• 117. ARM CYLINDER(QUICK COUPLER SPEC.)(Y SPEC.)
• 118. (88A)ARM CYLINDER(QUICK COUPLER SPEC.)(K SPEC.)
• 119. (88B)ARM CYLINDER(STANDARD SPEC.)(Y SPEC.)
• 120. (88C)ARM CYLINDER(STANDARD SPEC.)(K SPEC.)
• 121. BUCKET CYLINDER(Y SPEC.)
• 122. (89A)BUCKET CYLINDER(K SPEC.)
• 123. SWING CYLINDER(Y SPEC.)
• 124. (90A)SWING CYLINDER(K SPEC.)
• 125. BLADE CYLINDER(Y SPEC.)
• 126. (91A)BLADE CYLINDER(K SPEC.)
• 127. (91B)BLADE CYLINDER(ANGLE BLADE SPEC.)
• 128. (91C)ANGEL CYLINDER(ANGLE BLADE SPEC.)
• 129. TRAVEL MOTOR
• 130. (92A)TRAVEL MOTOR(ANGLE BLADE SPEC.)
• 131. TURNING MOTOR
• 132. SWIVEL JOINT(Y SPEC.)(TO M60555)
• 133. (94A)SWIVEL JOINT(N SPEC.)(FROM M60556)
• 134. (94B)SWIVEL JOINT(ANGLE BLADE SPEC.)
• 135. CONTROL VALVE(1/7)
• 136. CONTROL VALVE(2/7)
• 137. CONTROL VALVE(3/7)

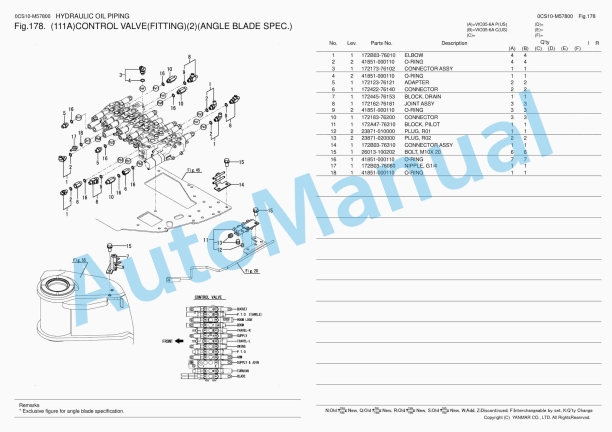

• 138. CONTROL VALVE(4/7)
• 139. CONTROL VALVE(5/7)
• 140. CONTROL VALVE(6/7)
• 141. CONTROL VALVE(7/7)
• 142. (101A)CONTROL VALVE(1/8)(ANGLE BLADE SPEC.)
• 143. (101B)CONTROL VALVE(2/8)(ANGLE BLADE SPEC.)
• 144. (101C)CONTROL VALVE(3/8)(ANGLE BLADE SPEC.)
• 145. (101D)CONTROL VALVE(4/8)(ANGLE BLADE SPEC.)
• 146. (101E)CONTROL VALVE(5/8)(ANGLE BLADE SPEC.)
• 147. (101F)CONTROL VALVE(6/8)(ANGLE BLADE SPEC.)
• 148. (101G)CONTROL VALVE(7/8)(ANGLE BLADE SPEC.)
• 149. (101H)CONTROL VALVE(8/8)(ANGLE BLADE SPEC.)
• 150. (101I)CONTROL VALVE(1/7)(THUMB BRACKET SPEC.)
• 151. (101J)CONTROL VALVE(2/7)(THUMB BRACKET SPEC.)
• 152. (101K)CONTROL VALVE(3/7)(THUMB BRACKET SPEC.)
• 153. (101L)CONTROL VALVE(4/7)(THUMB BRACKET SPEC.)
• 154. (101M)CONTROL VALVE(5/7)(THUMB BRACKET SPEC.)
• 155. (101N)CONTROL VALVE(6/7)(THUMB BRACKET SPEC.)
• 156. (101O)CONTROL VALVE(7/7)(THUMB BRACKET SPEC.)

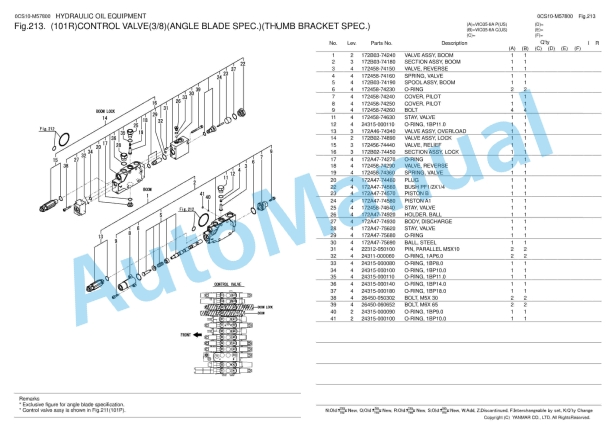

• 157. (101P)CONTROL VALVE(1/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 158. (101Q)CONTROL VALVE(2/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 159. (101R)CONTROL VALVE(3/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 160. (101S)CONTROL VALVE(4/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 161. (101T)CONTROL VALVE(5/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 162. (101U)CONTROL VALVE(6/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 163. (101V)CONTROL VALVE(7/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 164. (101W)CONTROL VALVE(8/8)(ANGLE BLADE SPEC.)(THUMB BRACKET SPEC.)
• 165. REMOTE CONTROL VALVE(RIGHT)
• 166. REMOTE CONTROL VALVE(LEFT)
• 167. WAY VALVE
• 168. (104A)2-WAY VALVE(ANGLE BLADE SPEC.)
• 169. SOLENOID VALVE(ESS PTO)
• 170. SOLENOID VALVE(P.T.O.)
• 171. (106A)SOLENOID VALVE(P.T.O.2)(ANGLE BLADE SPEC.)
• 172. (106B)SOLENOID VALVE BRACKET(P.T.O.2)(ANGLE BLADE SPEC.)
• 173. HYD. OIL TANK
• 174. QUICK COUPLER(HITCH CYLINDER)
• 175. TANK – PUMP CONTROL VALVE
• 176. CONTROL VALVE – TURNING MOTOR
• 177. CONTROL VALVE(FITTING)(1)
• 178. (110A)CONTROL VALVE(FITTING)(1)(ANGLE BLADE SPEC.)
• 179. CONTROL VALVE(FITTING)(2)
• 180. (111A)CONTROL VALVE(FITTING)(2)(ANGLE BLADE SPEC.)
• 181. CONTROL VALVE – RETURN DRAIN
• 182. CONTROL VALVE – BOOM BULKHEAD SWING
• 183. CONTROL VALVE – BOOM CYLINDER
• 184. CONTROL VALVE – SWIVEL JOINT
• 185. (115A)CONTROL VALVE – SWIVEL JOINT(ANGLE BLADE SPEC.)
• 186. TRACK FRAME
• 187. (116A)TRACK FRAME(ANGLE BLADE SPEC.)
• 188. ARM CYLINDER BUCKET CYLINDER
• 189. (CONTROL VALVE – BOOM)
• 190. (BOOM – ARM END)
• 191. (SOLENOID VALVE)
• 192. (120A)P.T.O.(SOLENOID VALVE)(ANGLE BLADE SPEC.)
• 193. (SOLENOID VAVLE, ESS)

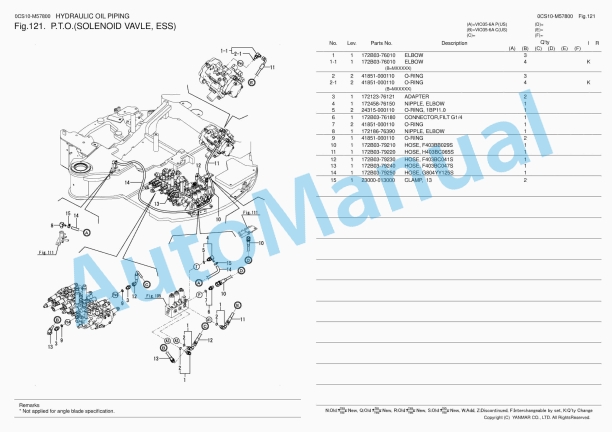

• 194. (121A)P.T.O.(SOLENOID VAVLE, ESS)(ANGLE BLADE SPEC.)
• 195. (121B)P.T.O.2(ANGLE BLADE)(ANGLE BLADE SPEC.)
• 196. CONTROL PIPING(1)
• 197. (122A)CONTROL PIPING(1)(ANGLE BLADE SPEC.)
• 198. CONTROL PIPING(2)
• 199. ACCUMULATOR
• 200. GREASING
• 201. QUICK COUPLER(HYD. OIL PIPING)(1)
• 202. QUICK COUPLER(HYD. OIL PIPING)(2)
• 203. QUICK COUPLER(BODY)
• 204. BOOM BRACKET
• 205. BOOM
• 206. ARM
• 207. (132A)ARM(THUMB BRACKET SPEC.)
• 208. BUCKET ARM LINK
• 209. (133A)BUCKET PIN(QUICK COUPLER SPEC.)
• 210. (133B)BUCKET
• 211. (133C)BUCKET PIN
• 212. BLADE
• 213. (134A)BLADE(ANGLE BLADE SPEC.)
• 214. LABEL KIT(FOR CANADA)(OPTIONAL)
• 215. (135A)LABEL KIT(FOR CANADA)(ANGLE BLADE SPEC.)(OPTIONAL)
• 216. REMOTE CONTROLLER KIT(OPTIONAL)
• 217. OVER LOAD VALVE KIT(OPTIONAL)
• 218. ADDITIONAL WEIGHT KIT(OPTIONAL)
• 219. BUCKET LINK WITH HOOK(OPTIONAL)
• 220. RADIO KIT(OPTIONAL)
• 221. RADIO KIT(OPTIONAL)(WITHOUT RADIO)
• 222. Parts No. Index
