Yanmar ViO75-C Excavator Parts Catalog

Description

• Model List:
  • ViO75-C Excavator

• 1. Reference Materials
• 2. Contents
• 3. LABEL
• 4. SAFETY LABEL
• 5. REPAIR PARTS
• 6. MUFFLER
• 7. AIR CLEANER
• 8. ACCELERATOR LEVER
• 9. ENGINE MOUNT
• 10. RADIATOR SUB-TANK
• 11. RADIATOR MOUNT
• 12. FUEL TANK
• 13. FUEL LINE
• 14. BATTERY
• 15. ELECTRIC PART(WIRING)
• 16. ELECTRIC PART(WIRING A/C)
• 17. ELECTRIC PART(EQUIPMENT)
• 18. ELECTRIC PART(QUICK COUPLER)
• 19. TRAVEL ALARM
• 20. INDICATOR BOX
• 21. HEATER
• 22. AIR CONDITIONER(ENGINE RELATED)
• 23. AIR CONDITIONER(CONDENSER RELATED)
• 24. AIR CONDEITONER(CABIN RELATED)
• 25. AIR CONDITIONER(PIPING)
• 26. SPROCKET ROLLER
• 27. (25A)TRACK ROLLER(K SPEC.)
• 28. IDLER ADJUST
• 29. (26A)CRAWLER ADJUST(S SPEC.)
• 30. CRAWLER
• 31. CONTROL EQUIPMENT(LOCK LEVER STAND)
• 32. CONTROL EQUIPMENT(TRAVEL)
• 33. CONTROL EQUIPMENT(BLADE)
• 34. CONTROL EQUIPMENT(SWING PEDAL)
• 35. CONTROL EQUIPMENT(LOW-HIGH PEDAL)
• 36. CONTROL EQUIPMENT(P.T.O. PEDAL)
• 37. CONTROL VALVE PLATE
• 38. FRAME TURNING BEARING
• 39. COVER(FRAME)
• 40. COVER(AROUND THE CONTROL)
• 41. COVER(AROUND THE SEAT)
• 42. STEP INSTRUMENT PANEL
• 43. SEAT SEAT MOUNT
• 44. HOOD(BODY)
• 45. HOOD(UPPER COVER)
• 46. HOOD(SIDE REAR COVER)
• 47. HOOD(FRONT)
• 48. WINDOW WASHER
• 49. TIM CABIN(BODY, ACCESSORY)
• 50. TIM CABIN(GLASS)
• 51. TIM CABIN(ELECTRIC)
• 52. TIM CABIN(FRONT WINDOW, ROOF GUARD)
• 53. TIM CABIN(DOOR)

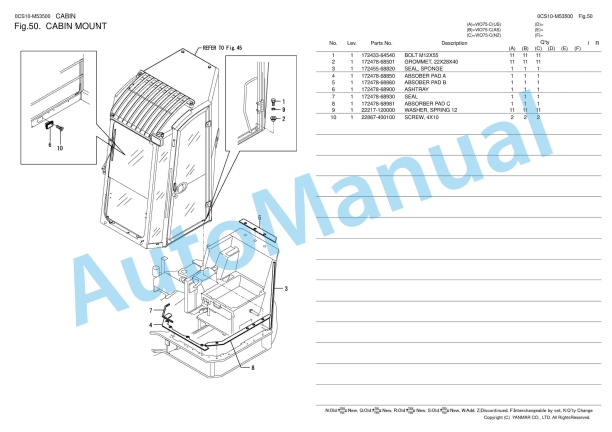

• 54. CABIN MOUNT
• 55. HYD.OIL PUMP JOINT
• 56. BOOM CYLINDER
• 57. ARM CYLINDER
• 58. BUCKET CYLINDER
• 59. SWING CYLINDER
• 60. BLADE CYLINDER
• 61. HITCH CYLINDER
• 62. TRAVEL MOTOR(TO M15128)
• 63. (58A)TRAVEL MOTOR(FROM M15129)
• 64. TURNING MOTOR
• 65. SWIVEL JOINT(Y SPEC.)
• 66. (60A)SWIVEL JOINT(N SPEC.)
• 67. (60B)SWIVEL JOINT KIT(N SPEC.)

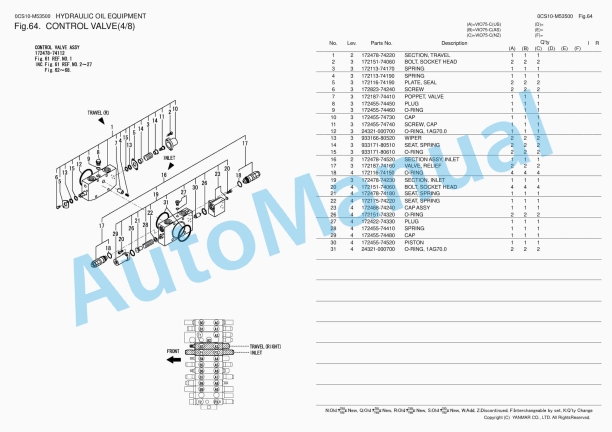

• 68. CONTROL VALVE(1/8)
• 69. CONTROL VALVE(2/8)
• 70. CONTROL VALVE(3/8)
• 71. CONTROL VALVE(4/8)
• 72. CONTROL VALVE(5/8)
• 73. CONTROL VALVE(6/8)
• 74. CONTROL VALVE(7/8)
• 75. CONTROL VALVE(8/8)
• 76. WAY VALVE
• 77. REMOTE CONTROL VALVE
• 78. OIL COOLER
• 79. HYD.OIL TANK
• 80. HYD.OIL PIPING(TANK – PUMP – CONTROL VALVE)
• 81. HYD.OIL PIPING(CONTROL VALVE – TURNING MOTOR, BOOM)
• 82. HYD.OIL PIPING(PUMP,C/V – SWIVEL JOINT,SWING CYLINDER)
• 83. HYD.OIL PIPING(RETURN 1)
• 84. HYD.OIL PIPING(RETURN 2)
• 85. HYD.OIL PIPING(P.T.O. FRAME END)
• 86. HYD.OIL PIPING(TRACK FRAME)
• 87. HYD.OIL PIPING(BOOM)
• 88. HYD.OIL PIPING(P.T.O. ARM END)
• 89. HYD.OIL PIPING(QUICK COUPLER)
• 90. CONTROL PIPING(RETURN)
• 91. CONTROL PIPING(REMOTE CONTROL VALVE – 2-WAY VALVE)
• 92. GREASING
• 93. BOOM BRACKET
• 94. BOOM
• 95. BUCKET ARM LINK
• 96. QUICK CUPLER
• 97. BUCKET
• 98. BLADE
• 99. Parts No. Index
