Yanmar ZT350, ZT370 Parts Catalog

Description

• Model List:
  • ZT350, ZT370

• 1. Preface.
• 2. Content.
• 3. EXHAUST SEA WATER BLOCK-OFF(OPTIONAL)
• 4. GIMBAL HOUSING
• 5. TRANSOM PLATE
• 6. DRIVE SHAFT HOUSING DRIVE GEAR
• 7. GEAR HOUSING
• 8. CASE PLATE SHIFTER(ZT350/MECHANICAL TYPE)
• 9. (6A)CASE PLATE SHIFTER(ZT370/MECHANICAL TYPE)
• 10. CASE PLATE CABLE(ZT350/SOLENOID TYPE)
• 11. (7A)CASE PLATE CABLE(ZT370/SOLENOID TYPE)
• 12. SHIFT CABLE(MECHANICAL TYPE)
• 13. SHIFT CABLE(SOLENOID TYPE)
• 14. GIMBAL RING STEERING LEVER
• 15. BELL HOUSING
• 16. UNIVERSAL JOINT CLUTCH(ZT350)
• 17. (12A)UNIVERSAL JOINT CLUTCH(ZT370)

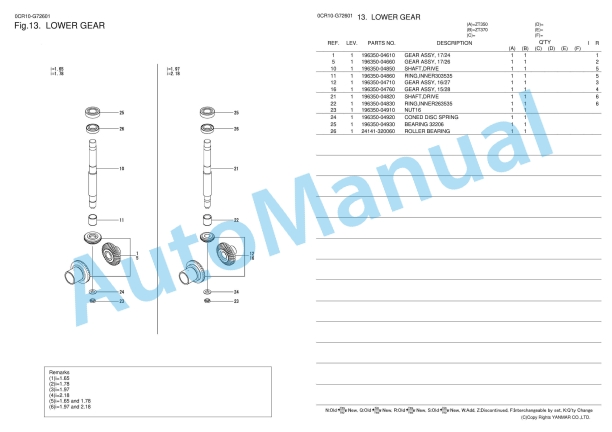

• 18. LOWER GEAR
• 19. PROPELLER ACCESSORY
• 20. PROPELLER
• 21. SHIFT BRACKET(MECHANICAL TYPE)
• 22. TRIM PUMP
• 23. TRIM CYLINDER HOSE
• 24. LUB.OIL MONITOR
• 25. CORROSION PROTECTION

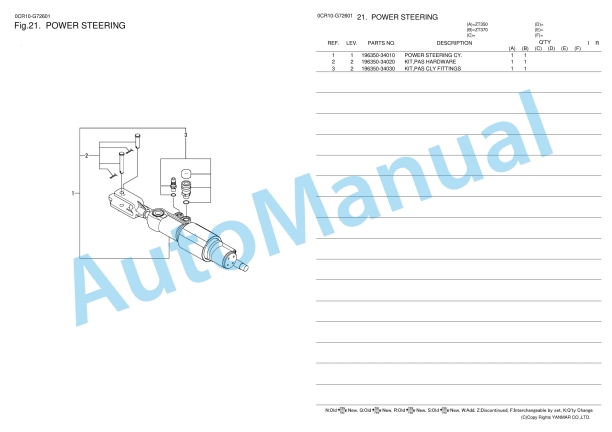

• 26. POWER STEERING
• 27. SPARE PARTS(GIMBAL)(OPTIONAL)
• 28. SPARE PARTS(DRIVE)(OPTIONAL)

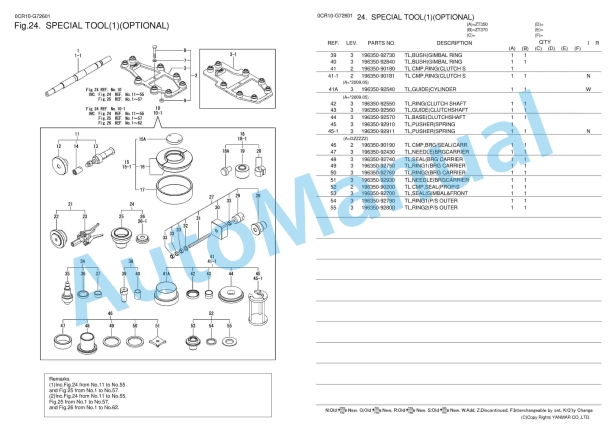

• 29. SPECIAL TOOL(1)(OPTIONAL)
• 30. SPECIAL TOOL(2)(OPTIONAL)

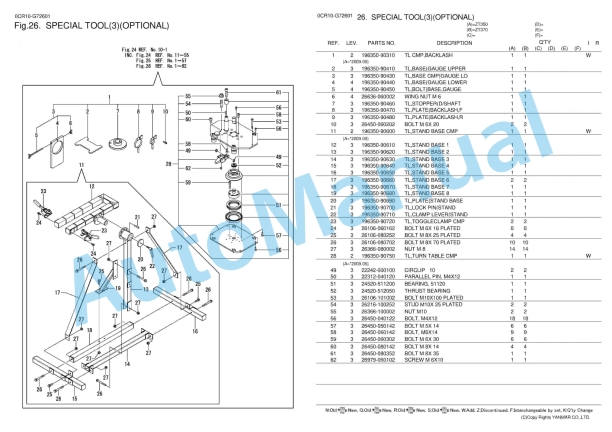

• 31. SPECIAL TOOL(3)(OPTIONAL)
• 32. TOOL(1)(OPTIONAL)
• 33. TOOL(2)(OPTIONAL)
• 34. OIL PRESSURE MEASUREMENT DEVICE(OPTIONAL)
• 35. PartsNo Index.
