Komatsu D155CX-8 Bull Dozer Field Assembly Instruction GEN00222-01

Type Of Manual: Field Assembly Instruction
Manual ID: GEN00222-01
Format: PDF
Size: 2.3MB
Number of Pages: 35

Name: Komatsu D155CX-8 Bull Dozer Field Assembly Instruction GEN00222-01
Price: 30.00 USD
Availability: InStock

$30.00

Description

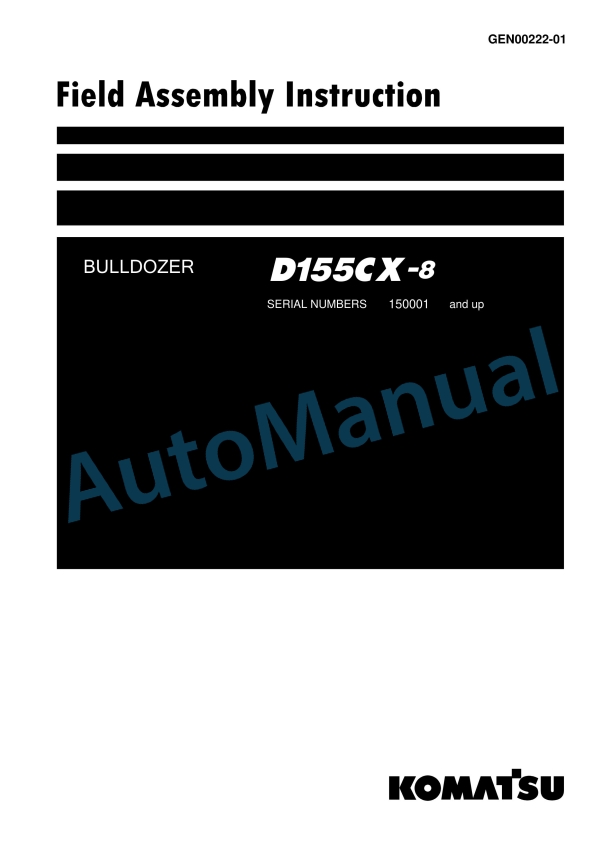

1. COVER
2. CONTENTS
3. SPECIFICATIONS

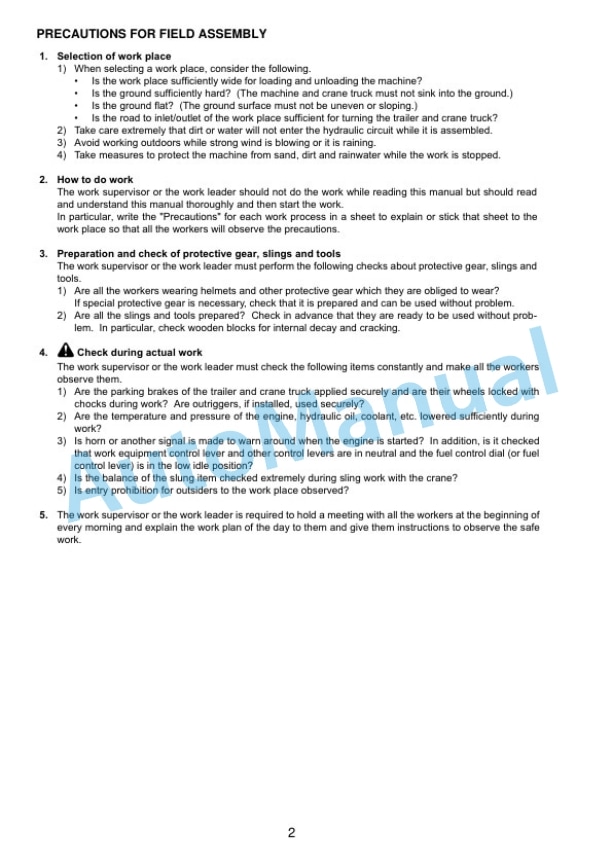

4. PRECAUTIONS FOR FIELD ASSEMBLY
5. DISPOSAL OF REMOVED PARTS
6. STYLE FOR TRANSPORTATION
7. NECESSARY TOOLS
8. TIGHTENING TORQUE
9. SELECTION OF WIRE ROPES USED FOR ASSEMBLY

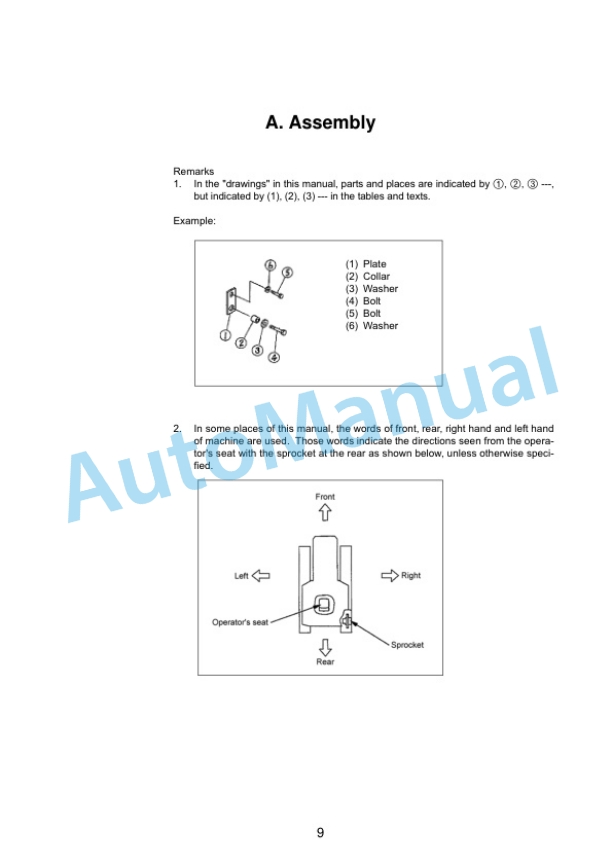

10. Assembly
10.1. A1 Check of oil and coolant levels
10.2. A2 Bleeding air from counterweight hydraulic cylinders and winch (When pipelayer attachment is installed)

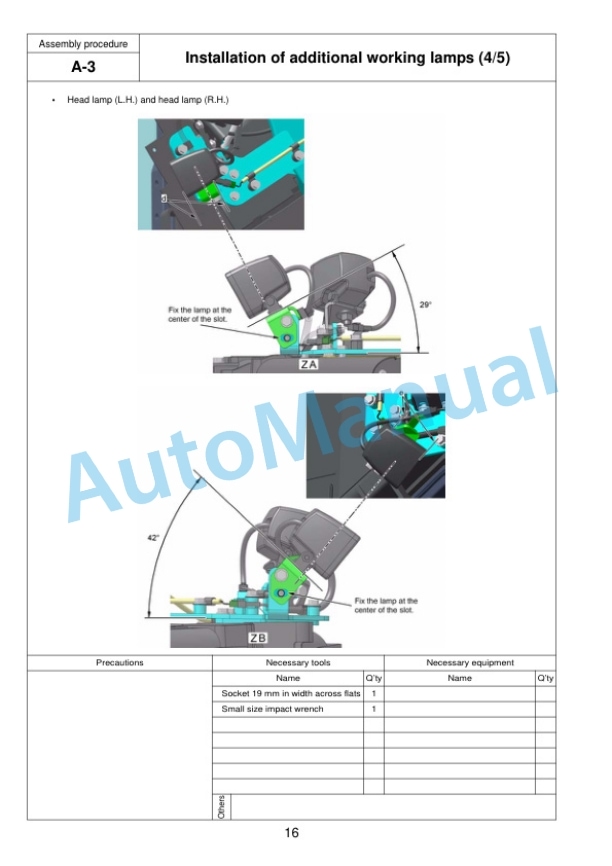

10.3. A3 Installation of additional working lamps
10.4. A4 Installation of fire extinguisher
10.5. A5 Adjustment of mirror
11. CHECK AND MAINTENANCE PROCEDURES AFTER COMPLETION OF ASSEMBLY

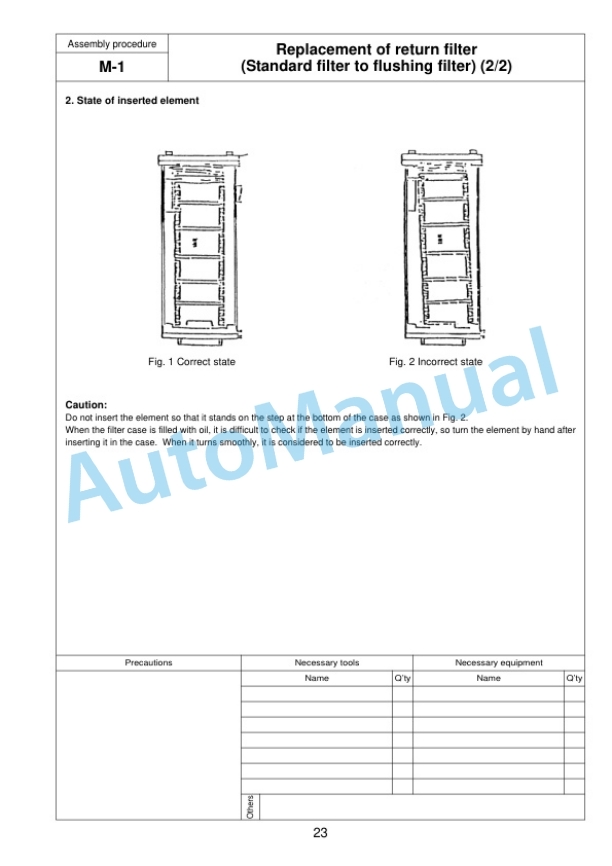

11.1. M1 Replacement of return filter (Standard filter to flushing filter)
11.2. M2 Flushing of hydraulic circuit, and bleeding air from counterweight cylinders and winch (Part 1) (When pipelayer attachment is installed)
11.3. M3 Replacement of return filter (Flushing filter to standard filter)
11.4. M4 Bleeding air from counterweight cylinders and winch (Part 2) (When pipelayer attachment is installed)
11.5. M5 Error code
