Komatsu HA250-2 Articulated Dump Truck Field Assembly Instruction GEN00094-00

Description

• Model List:
  • HA250-2 Articulated Dump Truck

• 1. Cover

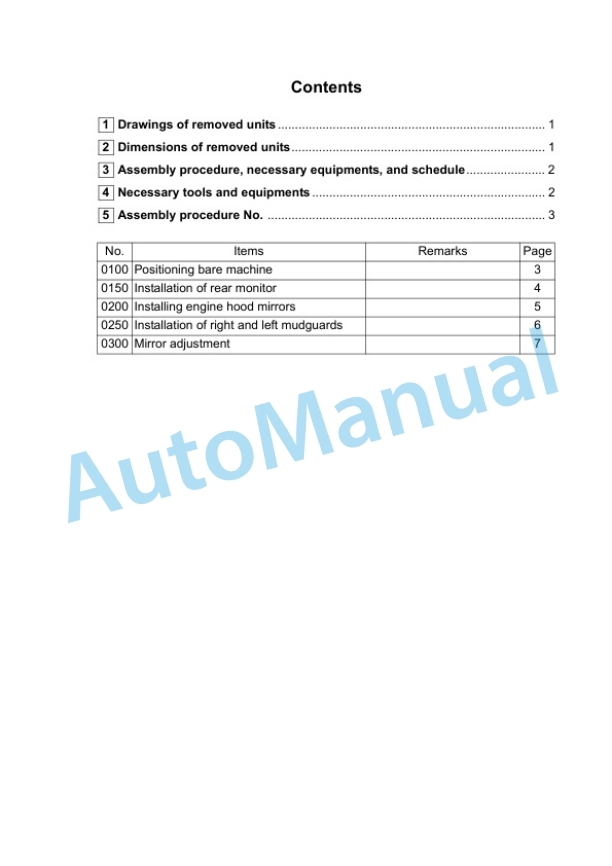

• 2. Contents
• 3. Drawings of removed units

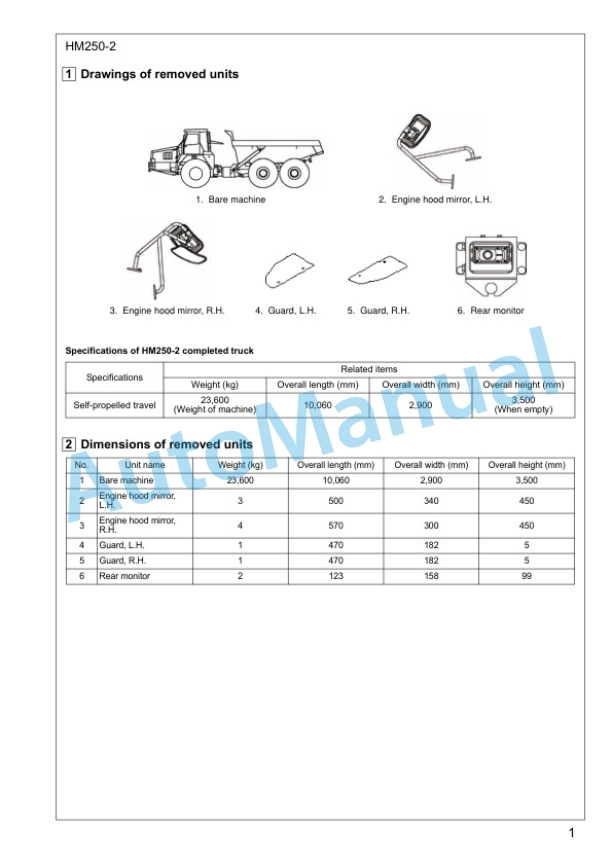

• 4. Dimensions of removed units
• 5. Assembly procedure, necessary equipments, and schedule
• 6. Necessary tools and equipments
• 7. Assembly procedure No.

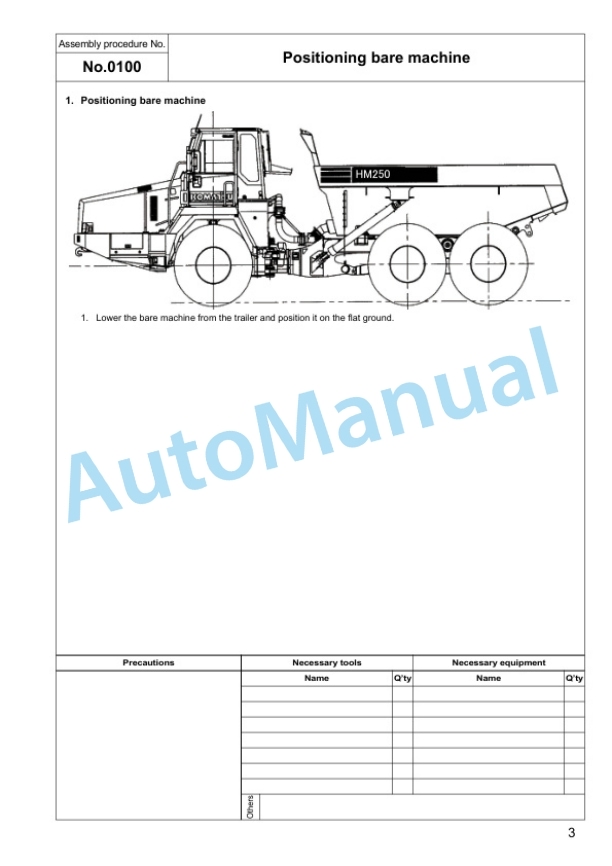

• 7.1. No.0100 Positioning bare machine
• 7.2. No.0150 Installation of rear monitor

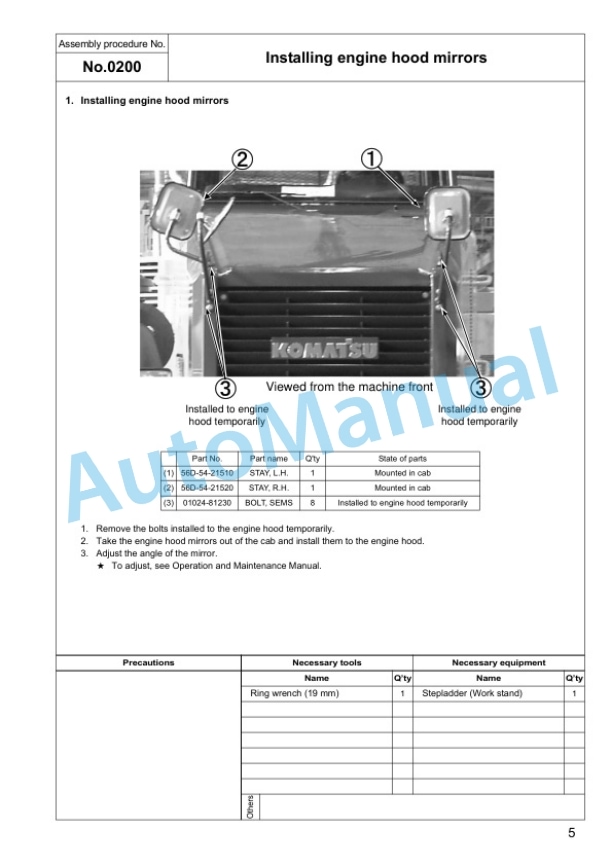

• 7.3. No.0200 Installing engine hood mirrors
• 7.4. No.0250 Installation of right and left mudguards
• 7.5. No.0300 Mirror adjustment
