Komatsu HD325-6, HD405-6 Dump Truck Field Assembly Instruction GEN00020-00

Description

• Model List:
  • HD325-6 Dump Truck
  • HD405-6 Dump Truck

• 1. MAIN MENU
• 2. COVER
• 3. CONTENTS
• 4. HD3256/HD4056
• 4.1. LIFTING UP CHASSIS ASSEMBLY
• 4.2. INSTALLING FRONT AXLE
• 4.3. INSTALLING FRONT TIRES
• 4.4. INSTALLING REAR TIRES
• 4.5. INSTALLING RIGHT FRONT LIGHT ASSEMBLY

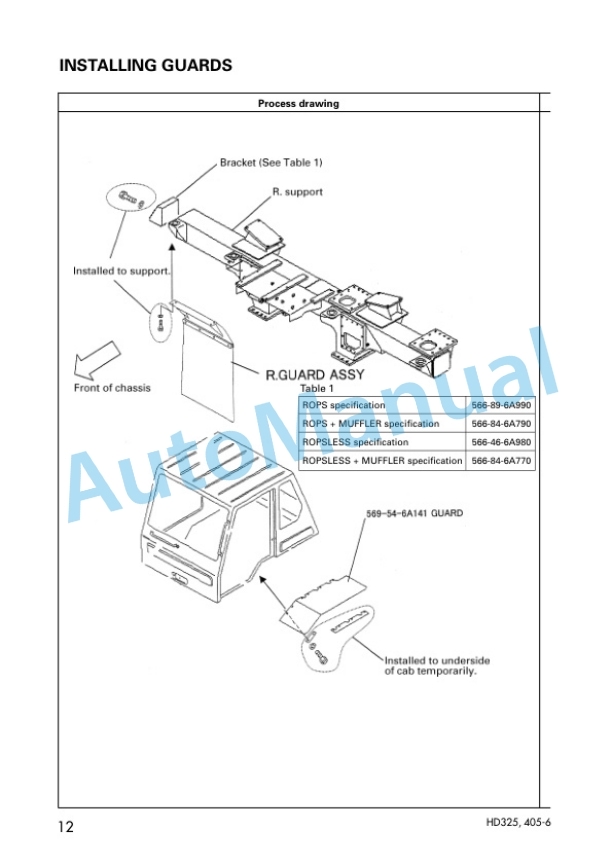

• 4.6. INSTALLING GUARDS
• 4.7. INSTALLING CATWALK AND GUARD
• 4.8. ASSEMBLING RIGHT PLATFORM
• 4.9. INSTALLING MIRRORS
• 4.10. INSTALLING BODY PINS

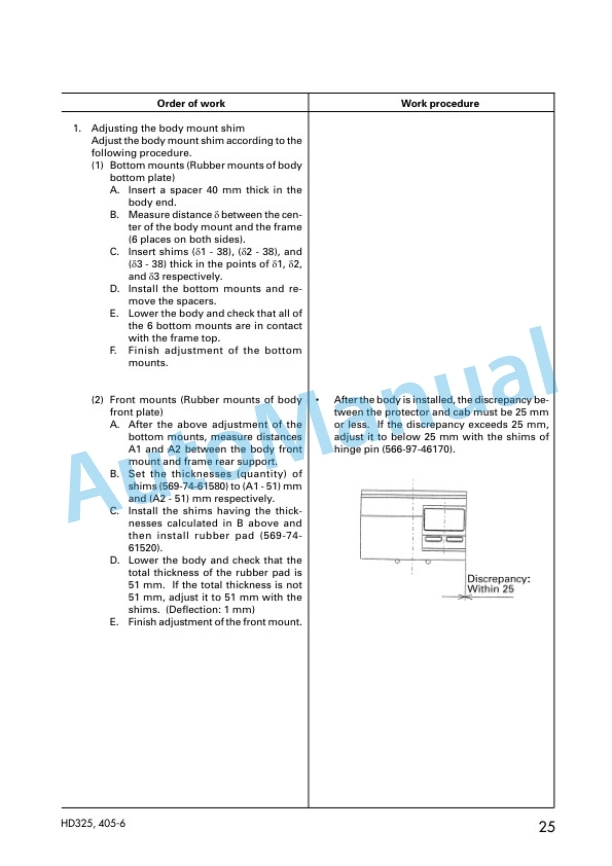

• 4.11. ADJUSTING BODY SHIMS
• 4.12. INSTALLING BODY ACCESSORIES
• 4.13. INSTALLING BODY GUARDS
• 5. HD3256
• 5.1. PREPARATION WORK

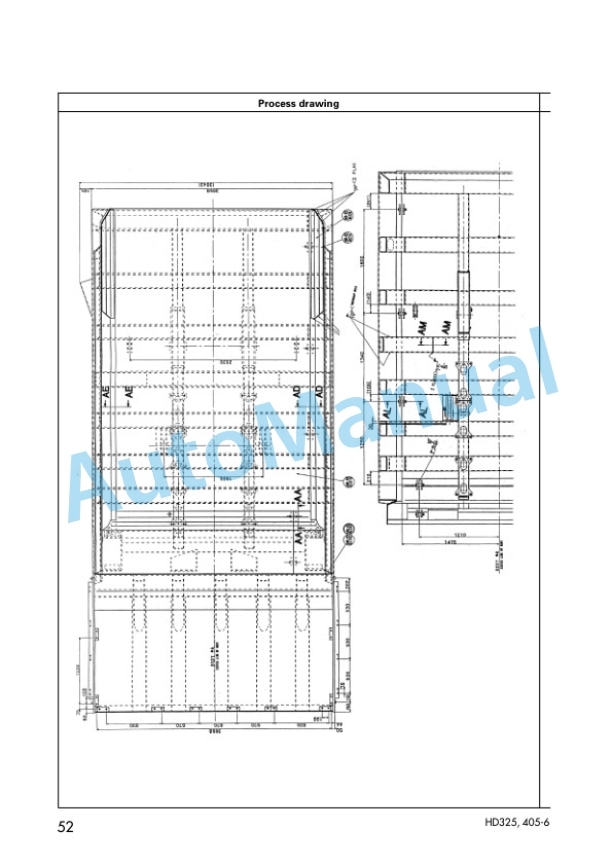

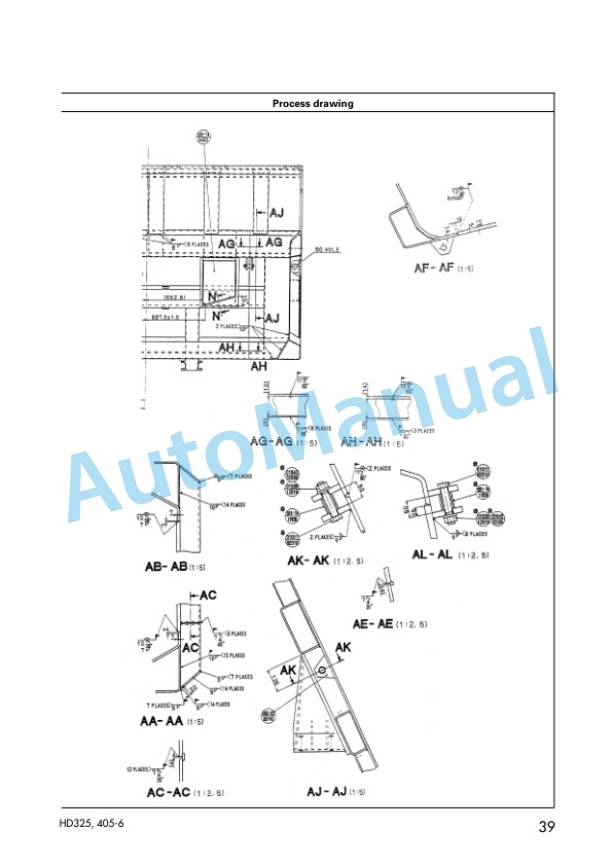

• 5.2. ASSEMBLY OF SPLIT BODY
• 5.3. WELDING BODY
• 5.4. WELDING BODY PROTECTOR
• 6. HD4056
• 6.1. PREPARATION WORK
• 6.2. ASSEMBLY OF SPLIT BODY
• 6.3. WELDING BODY
• 6.4. WELDING BODY PROTECTOR
• 7. APPENDIX
• 7.1. FIELD ASSEMBLY INSPECTION REPORT
