Komatsu HM300-2R Articulated Dump Truck Field Assembly Instruction GEN00091-02

Description

• Model List:
  • HM300-2R Articulated Dump Truck

• 1. Cover
• 2. Drawings of removed units
• 3. Dimensions of removed units
• 4. Assembly procedure, necessary equipments, and schedule
• 5. Necessary tools and equipments
• 6. Assembly procedure No.

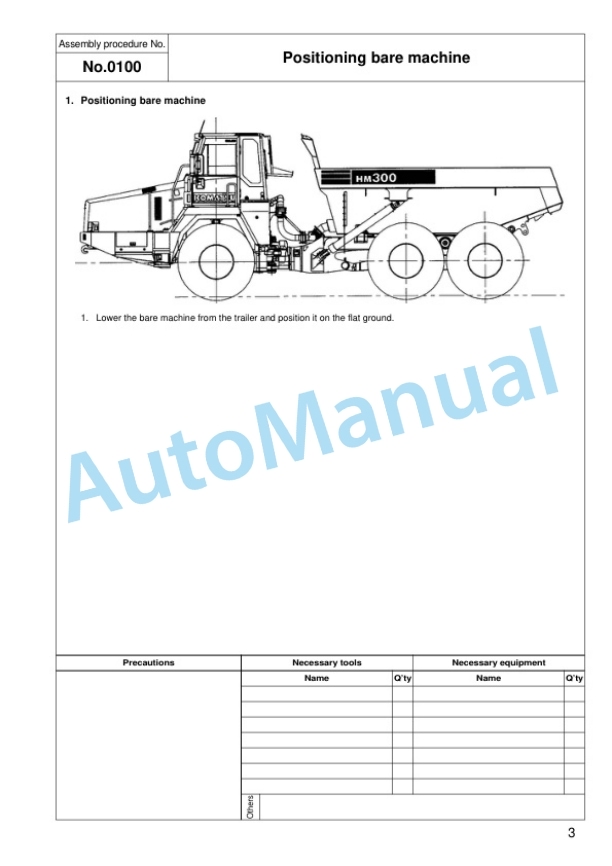

• 6.1. Positioning bare machine
• 6.2. Installation of rear monitor
• 6.3. Installing engine hood mirrors

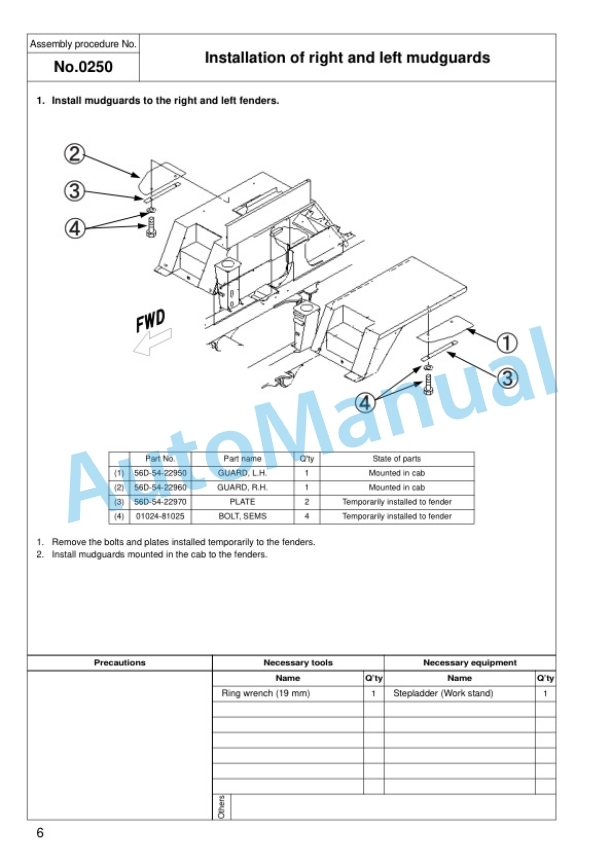

• 6.4. Installation of right and left mudguards
• 6.5. Adjusting N2 gas of front and rear suspensions
• 6.6. Sticking of dump body decals

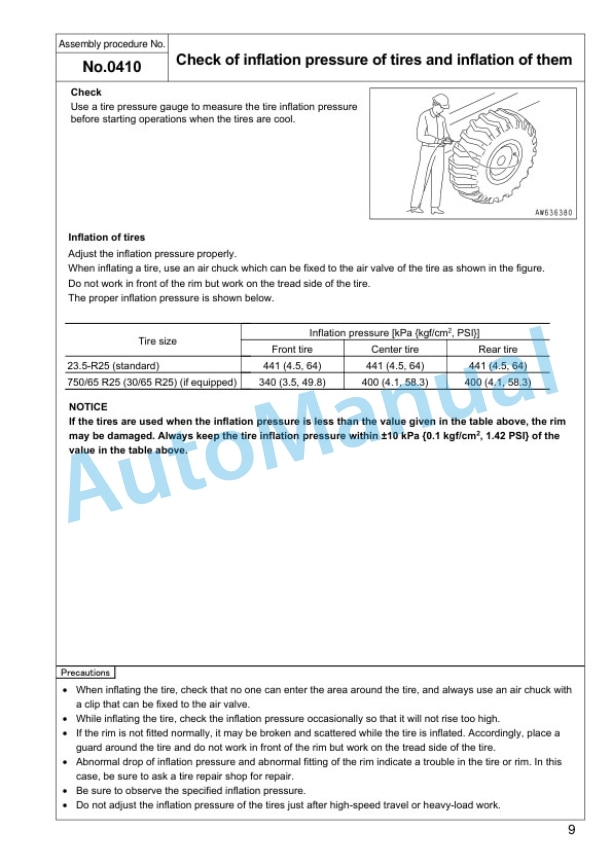

• 6.7. Check of inflation pressure of tires and inflation of them
• 6.8. Mirror adjustment for reference
