Komatsu PC360LC-11 Hydraulic Excavator Field Assembly Instruction GEN00132-04

Description

• Model List:
  • PC360LC-11 Hydraulic Excavator

• 1. COVER
• 2. FOREWORD
• 3. CONTENTS
• 4. Specifications
• 5. Precautions for field assembly
• 6. Disposal of removed parts
• 7. Assembling procedures, applicable equipment and schedule
• 8. Flow of field assembly
• 9. KIT layout diagram
• 10. Transportation
• 11. Tool list for field assembly
• 12. Tightening torque

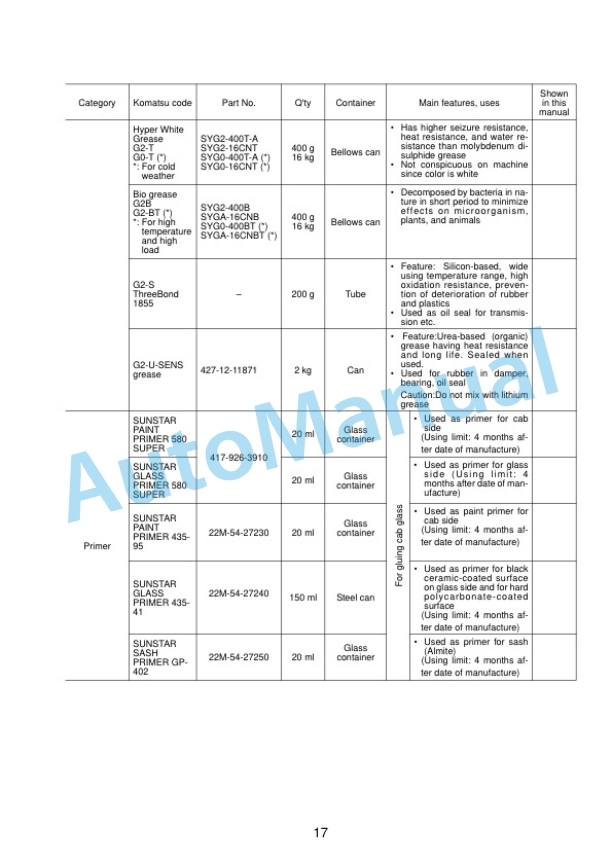

• 13. Coating materials
• 14. Selection of wire ropes used for assembly
• 15. Selection of nylon slings used for assembly
• 16. Assembly of chassis
• 16.1. A 1. Installation of handrail
• 16.2. A 2. Installation of climbing grip
• 16.3. A 3. Installation of mirror
• 17. Assembling of work equipment
• 17.1. B 1. Installation of arm assembly
• 17.2. B 2. Releasing remaining pressure in hydraulic circuit
• 17.3. B 3. Installation of bucket cylinder hoses between boom and bucket cylinder
• 17.4. B 4. Installation of bucket
• 17.5. B 5. Greasing after completion of work equipment
• 17.6. B 6. Bleeding air from work equipment circuit
• 18. Increasing and decreasing oF track frame gauge, assembling of counterweight

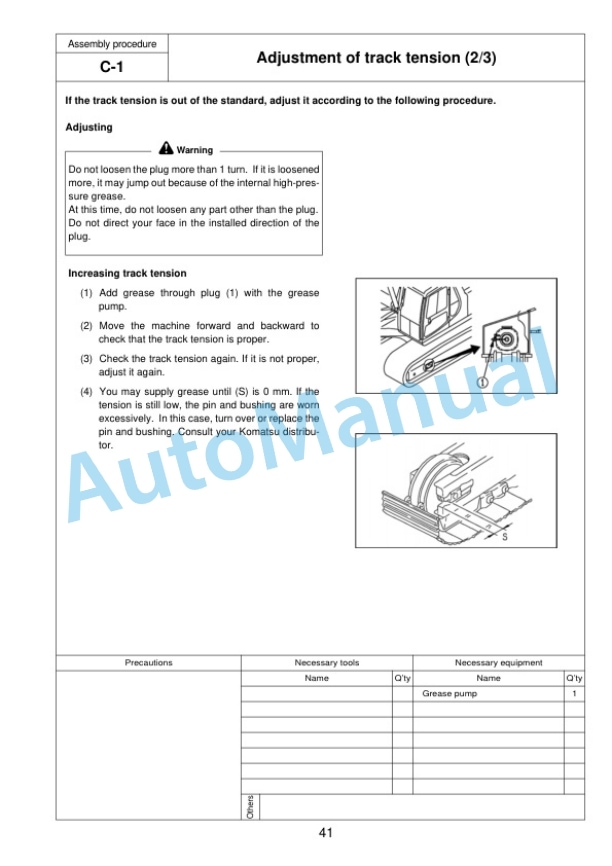

• 18.1. C 1. Adjustment of track tension
• 18.2. C 2. Sticking sheet to counterweight
• 18.3. C 3. Installation of camera
• 18.4. C 4. Installation of counterweight
• 19. Procedure for inspection and maintenance after completion of a ssembly
• 19.1. M 1. Replacement of return filter (Standard filter to flushing filter)
• 19.2. M 2. Flushing of hydraulic circuit
• 19.3. M 3. Replacement of return filter (Flushing filter to standard filter)
• 19.4. M 4. Check of oil/coolant level at each part
• 19.5. M 5. Inspection of oil level in hydraulic tank and refill
• 19.6. M 6. Parts to be touched up after field assembly

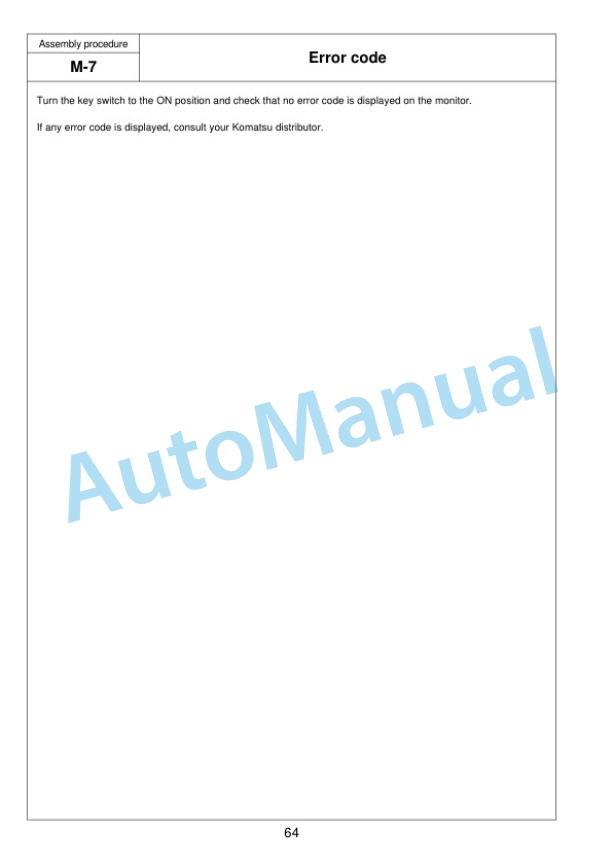

• 19.7. M 7. Error code
• 19.8. M 8. ADJUST KomVision Camera angle(KomVision Spec.)
• 20. Mounting bolt torque check sheet
• 21. FIELD ASSEMBLY INSPECTION REPORT
