Description
-
Model List:
- PC800-8R1 Hydraulic Excavator
- PC800LC-8R1 Hydraulic Excavator
- PC800SE-8R1 Hydraulic Excavator
- PC850-8R1 Hydraulic Excavator
- PC850SE-8R1 Hydraulic Excavator
- 1. Cover
- 2. Foreword
- 3. Contents
- 4. Specifications
- 5. Precautions for Field Assembly
- 6. Disposal of Removed Parts
- 7. Assembling Procedures, Applicable Equipment and Schedule
- 8. Kit Layout Diagram
- 9. Transportation
- 10. List of Tools for Field Assembling
- 11. Tightening Torque
- 12. Coating Materials List
- 13. Selection of Wire Ropes Used for Assembly
- 14. Assembly of Chassis
- 14.1. A1 Installation of Left and Right Track Frames
- 14.2. A2 Installation of Travel Pipe
- 14.3. A3 Installation of Top Guard
- 14.4. A4 Installation of Radiator Cover
- 14.5. A5 Installation of Rearview Mirror
- 14.6. A6 Installation of Left Side Step
- 14.7. A7 Installation of Handrail
- 14.8. A8 Installation of Handrail
- 14.9. A9 Installation of Muffler Tail Tube
- 14.10. A10 Sticking Sheet to Counterweight
- 14.11. A11 Installation of Counterweight
- 14.12. A12 Installation of KOMTRAX Antenna (if equipped)
- 14.13. A13 Installation of Step Light
- 14.14. A14 Air Bleeding of Travel Motor
- 14.15. A15 Installation of Travel Piping Cover
- 14.16. A16 Testing Track Shoe Tension
- 14.17. A17 Check Fuel, Coolant and Oil Levels
- 14.18. A18 Parts to be Touched up after Field Assembly
- 15. Assembling of Work Equipment of Backhoe
- 15.1. B1 Assembly of Arm Cylinder

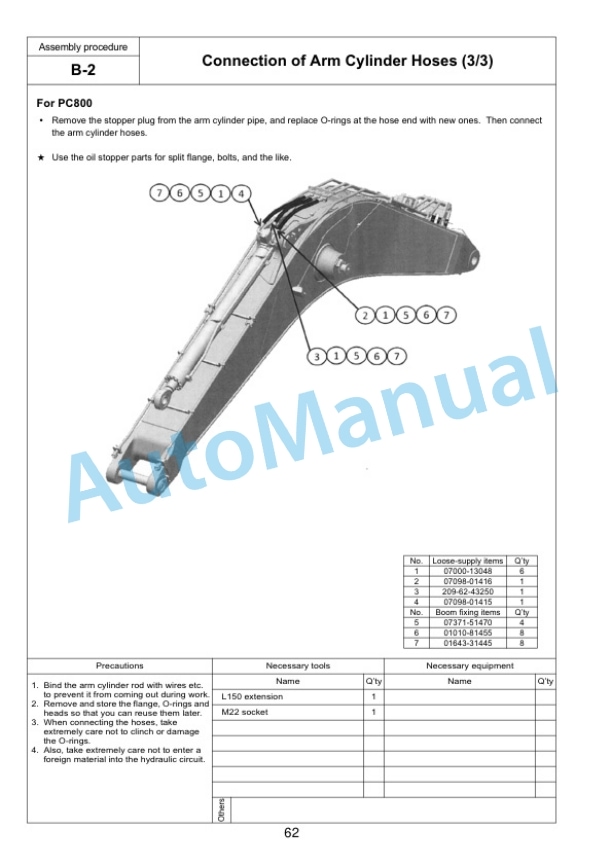

- 15.2. B2 Connection of Arm Cylinder Hoses
- 15.3. B3 Installation of Boom Cylinder Foot
- 15.4. B4 Relieving Remaining Pressure from Hydraulic Circuit
- 15.5. B5 Installation of Boom Cylinder Hoses
- 15.6. B6 Installation of Boom Foot Dust Seal
- 15.7. B7 Assembly of Boom Assembly
- 15.8. B8 Hose Connection of Arm and Bucket Circuits
- 15.9. B9 Installation of Quick Return Hose
- 15.10. B10 Installation of Boom Cylinder
- 15.11. B11 Installation of Arm Assembly
- 15.12. B12 Installation of Hose between Boom and Bucket Cylinder
- 15.13. B13 Installation of Bucket Assembly
- 15.14. B14 Lubrication Piping to Work Equipment
- 15.15. B15 Wiring of Work Equipment
- 15.16. B16 Greasing after Assembling Work Equipment
- 15.17. B17 Air Bleeding from Hydraulic Cylinder
- 16. Assembling of Work Equipment of Loading Shovel
- 16.1. C1 Releasing residual pressure in hydraulic circuit
- 16.2. C2 Pulling out boom foot pin and boom cylinder foot pin
- 16.3. C3 Installation of boom and arm assembly
- 16.4. C4 Installation of piping between chassis and boom
- 16.5. C5 Installation of flushing piping for boom cylinder and arm cylinder
- 16.6. C6 Installation of flushing piping for bucket cylinder
- 16.7. C7 Installation of flushing piping for bottom dump cylinder
- 16.8. C8 Installation of boom cylinder
- 16.9. C9 Installation of boom cylinder foot
- 16.10. C10 Installation of boom cylinder hoses
- 16.11. C11 Installation of boom cylinder rod pin
- 16.12. C12 Installation of arm cylinder hoses
- 16.13. C13 Installation of bucket cylinder
- 16.14. C14 Installation of bucket cylinder hose
- 16.15. C15 Installation of connecting hoses between chassis and boom top
- 16.16. C16 Installation of bottom dump cylinder hoses

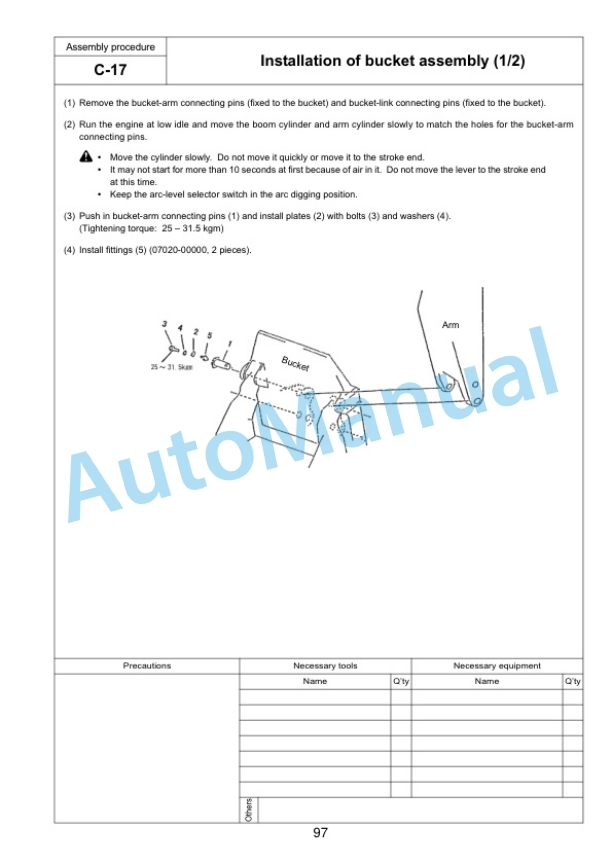

- 16.17. C17 Installation of bucket assembly
- 16.18. C18 Installation of working lamps
- 16.19. C19 Installation of work equipment grease piping
- 16.20. C20 Greasing after assembling of work equipment
- 16.21. C21 Bleeding air from work equipment circuit
- 17. Procedure for Inspection and Maintenance after Completion of Assembly
- 18. M1 Inspection of Oil Level in Hydraulic Tank and Refill
- 19. M2 Replacement of Return Filter (Standard Filter to Flushing Filter)
- 20. M3 Flushing of Hydraulic Circuit
- 21. M4 Replacement of Return Filter (Flushing Filter to Standard Filter)
- 22. M5 Failure Code
- 23. Field Assembly Inspection Report (Backhoe)

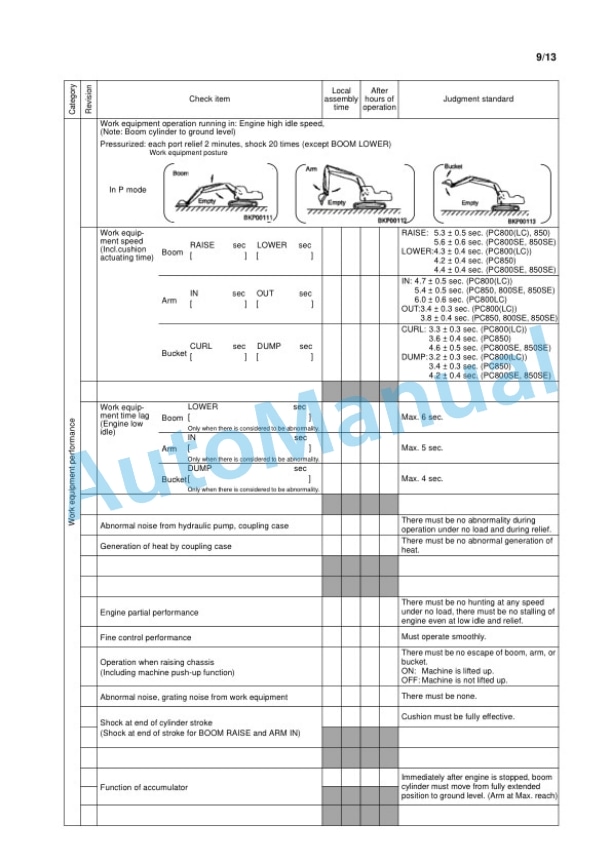

- 24. Field Assembly Inspection Report (Loading Shovel)
