Komatsu PC500LC-8, PC500LC-8R Hydraulic Excavator Field Assembly Instruction GEN00165-00

Description

• Model List:
  • PC500LC-8 Hydraulic Excavator
  • PC500LC-8R Hydraulic Excavator

• 1. COVER
• 2. FOREWORD
• 3. Precautions for Field Assembly
• 4. Disposal of removed parts
• 5. Transportation
• 5.1. Introduction
• 5.2. State of SubAssembly Parts and Blank Cap Position for each Part

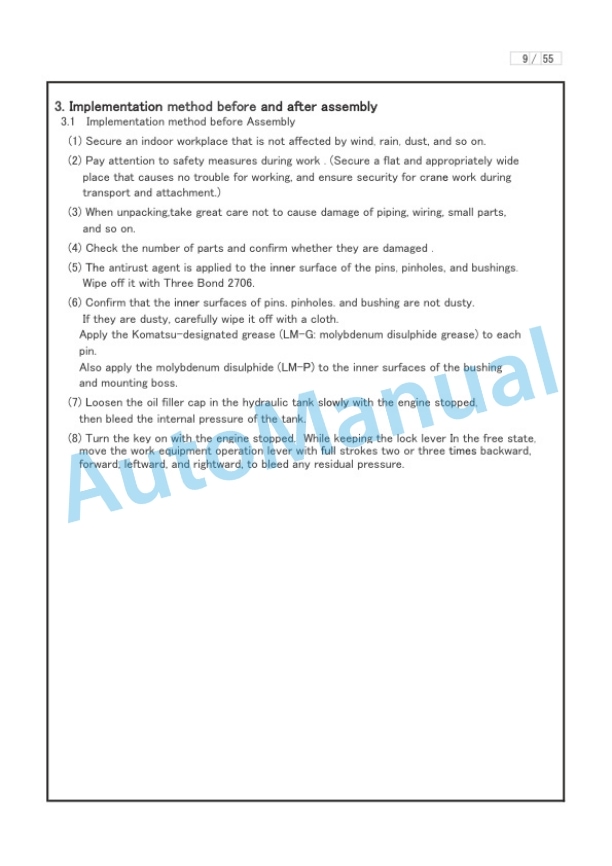

• 5.3. Implementation method before and after assembly
• 6. Fieldinstallation procedure
• 6.1. Attaching the boom cylinder
• 6.2. Attaching the boom assembly to the main body
• 6.3. Attaching the boom cylinder rod to the boom
• 6.4. Attaching the sound absorbing materials to the front of the weight
• 6.5. Attaching the weight
• 6.6. Attaching the arm to the boom
• 6.7. Connecting arm and bucket piping

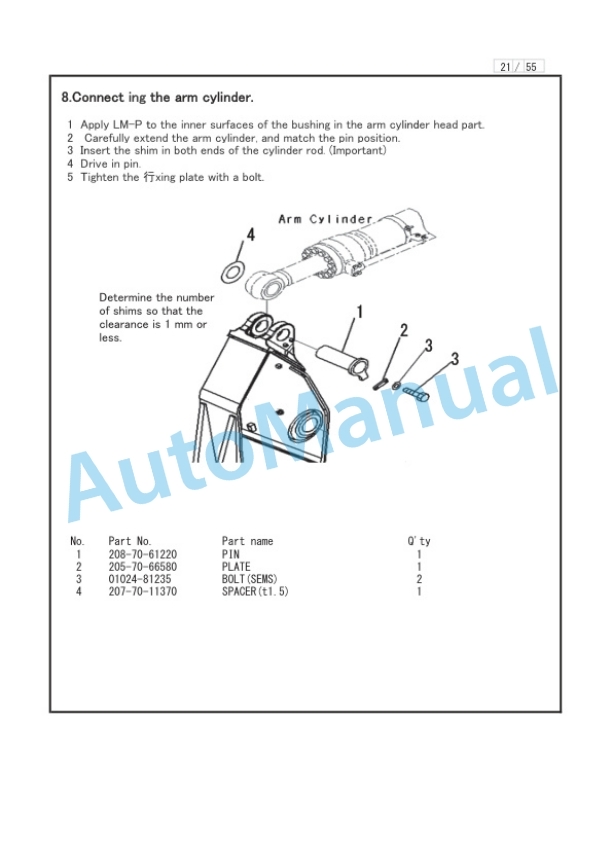

• 6.8. Connect ing the arm cylinder.
• 6.9. Connecting the bucket bottom pipes.(Apply to 3.4m Arm)
• 6.10. Attaching the bucket
• 6.11. Attaching the mirrors and handrail

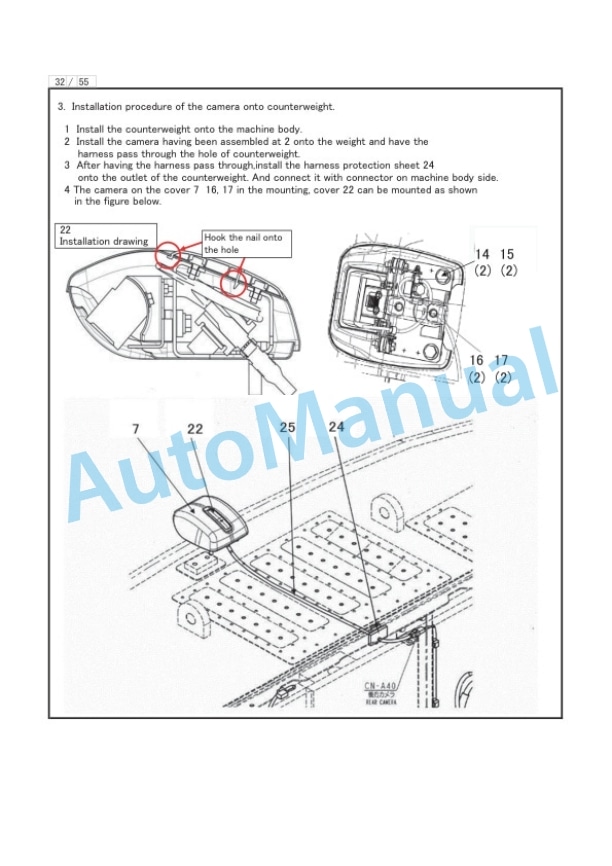

• 6.12. Installation of rear monitoring camera (Option)
• 6.13. Connection of the wiring of boom working lamp
• 6.14. Increasing of track frame gauge
• 6.15. Adjustment of track tension
• 6.16. Installation of steps
• 6.17. Greaseup
• 6.18. Check work equipment speed(Boom LOWER) and adjustment.
• 7. Machine equipped with attachment.
• 8. Weight list of each specification of PC500LC8,PC500LC8R
